Premium Collection

Zehnder
Subway

Dual energy operation
    Get in touch

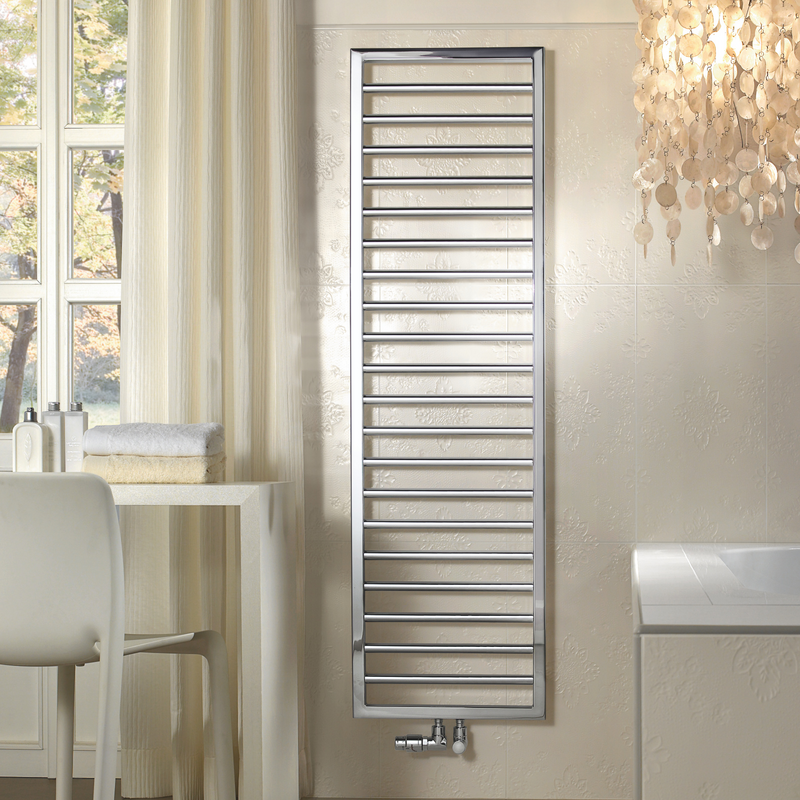

    Purism for walls: The pure design of Zehnder Subway is simple pleasure. The radiator impresses with a clear design aesthetic that refuses to compromise. Its distinctive square frame and delicate round tubes combine to create a designer piece that also doubles as a multiple towel rail. Available in almost any colour and finish from the Zehnder colour chart.

    Show more

    Premium Collection

    Zehnder Subway - Dual energy operation

    We also offer the following technologies

    Electric operationHydronic operation

    Benefits

    • Distinctive design ideally blends with modern bathrooms

    • Generous spaces between the tubes convenient for hanging towels

    • Brushed stainless steel version ensures resistance to corrosion

    • Special solutions support a wide range of application, such as room divider

    Show more

    Dual energy operation

    • Factory-assembled, elegantly integrated electric heating element reduces cost of installation

    • Dual energy operation provides warm towels and comfortable rooms all year round

    Colour System

    Zehnder Subway - Dual energy operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system or for dual energy operation

    Painted version
    Model H HT L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm W W W W
    SUBM-130-45/GD 1261 1291 450 509 415 269 500
    SUBM-130-60/GD 1261 1291 600 639 522 337 600
    SUBM-150-45/GD 1549 1579 450 615 502 325 600
    SUBM-150-60/GD 1549 1579 600 772 630 408 750
    SUBM-180-45/GD 1837 1867 450 715 585 380 600
    SUBM-180-60/GD 1837 1867 600 898 734 477 900
    H = height, L = length
    HT = Total height incl. electric heating element
    75/65/20 = Nominal heat output according to EN 442
    Chrome-plated version
    Model H HT L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm W W W W
    SUBMC-130-45/GD 1261 1291 450 336 273 176 300
    SUBMC-130-60/GD 1261 1291 600 408 333 214 300
    SUBMC-150-45/GD 1549 1579 450 413 336 216 300
    SUBMC-150-60/GD 1549 1579 600 502 409 264 500
    SUBMC-180-45/GD 1837 1867 450 486 395 254 300
    SUBMC-180-60/GD 1837 1867 600 590 481 310 600
    H = height, L = length
    HT = Total height incl. electric heating element
    75/65/20 = Nominal heat output according to EN 442
    Chrome-plated version
    Model H HT L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm W W W W
    SUBMI-130-45/GD 1261 1291 450 370 301 193 300
    SUBMI-130-60/GD 1261 1291 600 447 364 235 300
    SUBMI-150-45/GD 1549 1579 450 445 362 233 300
    SUBMI-150-60/GD 1549 1579 600 538 439 284 500
    SUBMI-180-45/GD 1837 1867 450 523 425 272 500
    SUBMI-180-60/GD 1837 1867 600 633 518 338 600
    H = height, L = length
    HT = Total height incl. electric heating element
    75/65/20 = Nominal heat output according to EN 442
