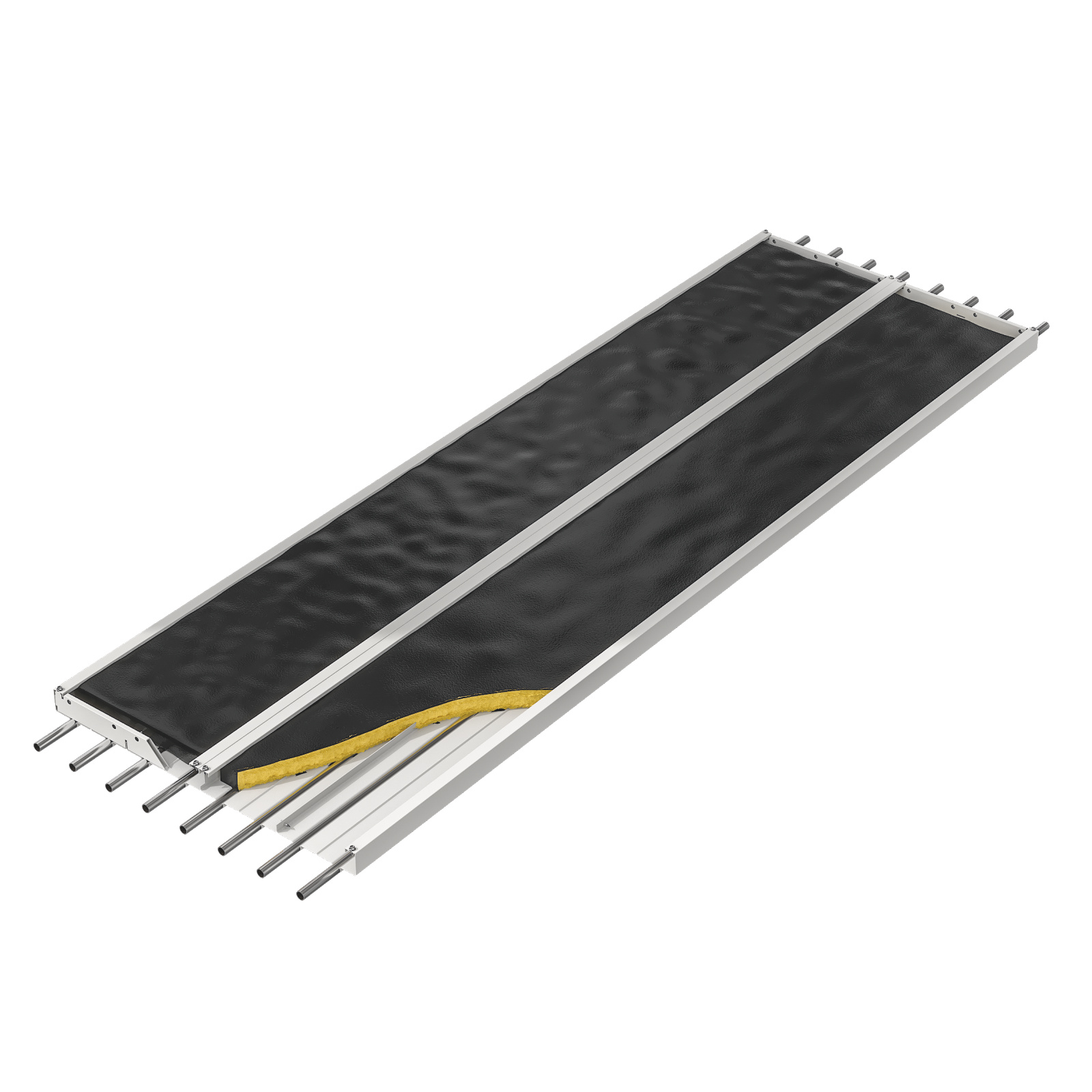

RHC, ZFP, 600, 8, lisse, laine minérale rétractable, enveloppée dans du papier d'aluminium

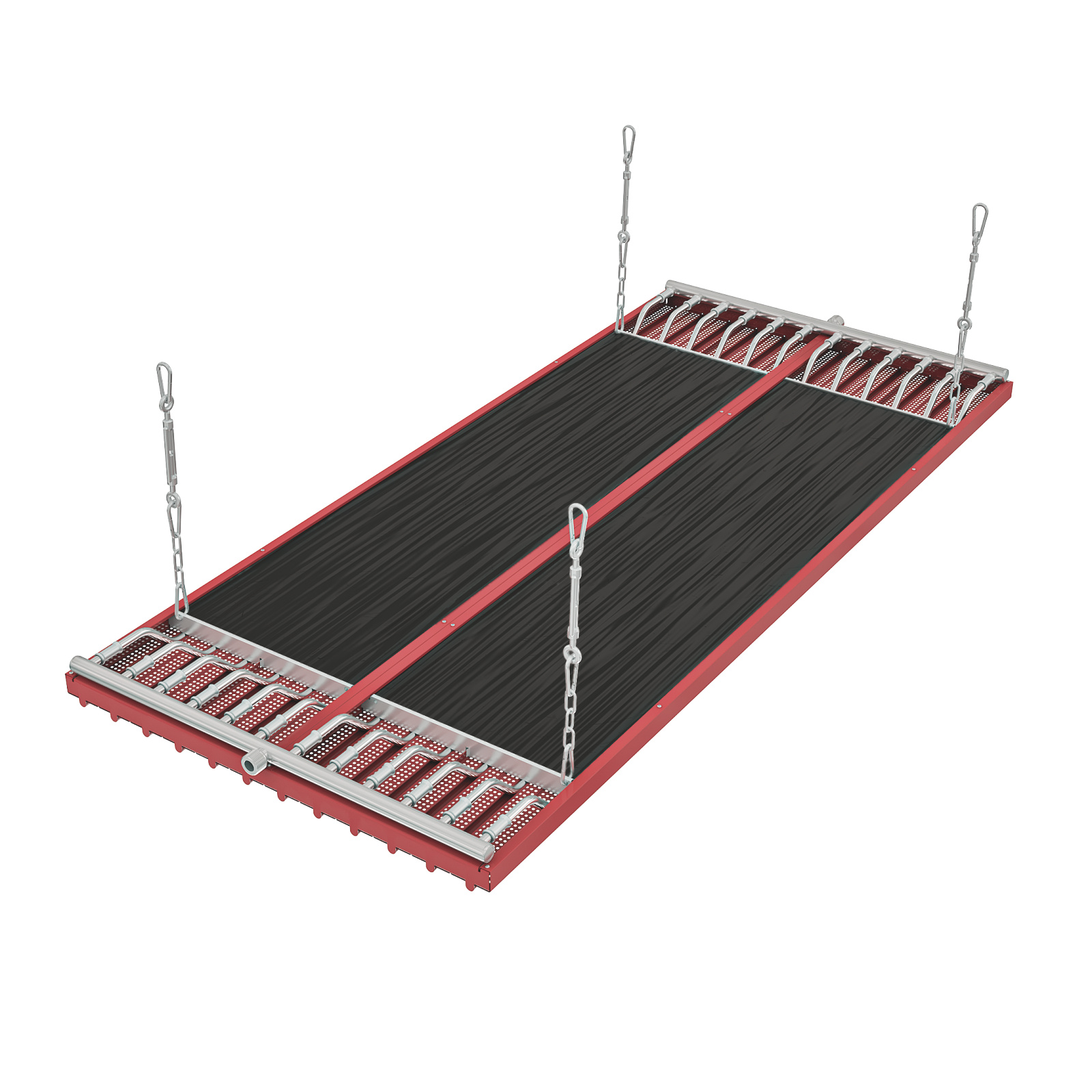

RHC, ZFP, 900, 12, ZSB, salle d'exposition, en haut, vue

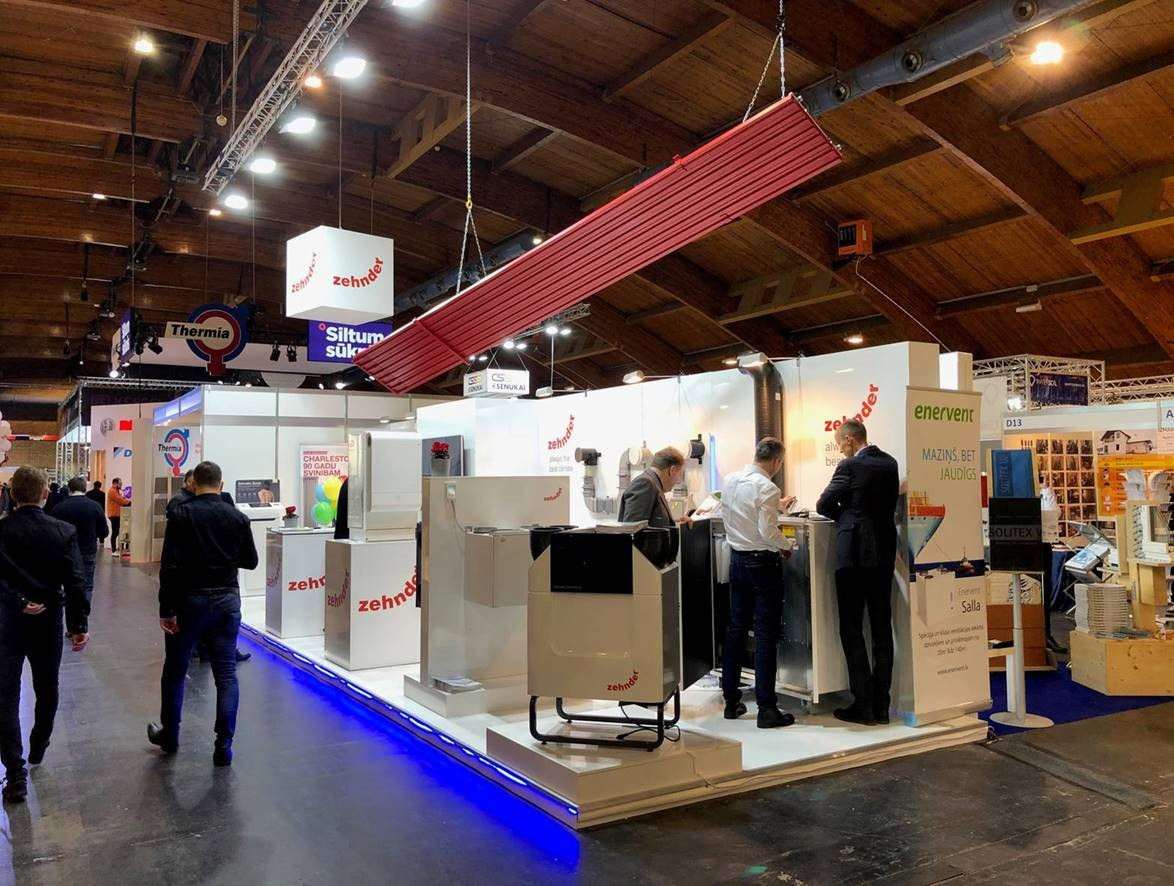

Exhibition

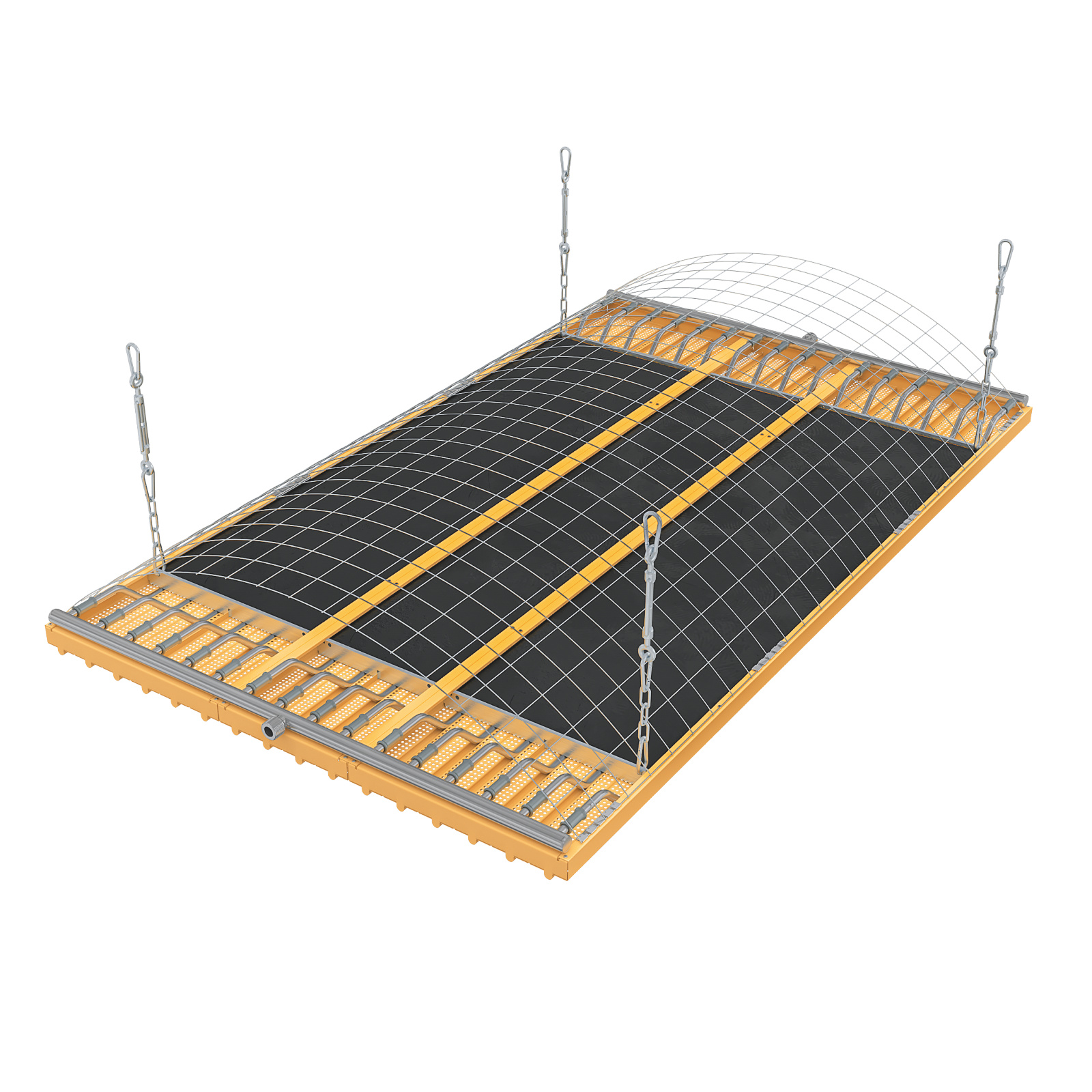

RHC, ZFP, 1200, 16, ZSB, sports, salle, haut, vue
Radiant Ceiling Panels

Zehnder
ZFP

    Zehnder ZFP radiant ceiling panels heat and cool a building comfortably and efficiently. They can be used in all rooms from approximately 2 m to 50 m in height and compared to other systems, they can achieve energy savings of up to 40%. Zehnder ZFP radiant ceiling panels are available in many different versions. The individual elements of Zehnder ZFP are designed to form an innovative modular system and can be combined to create a solution specific to the requirements of the project. Every project is designed according to the wishes of the customer and supplied according to the on-site workflow.

    Focus benefits

    High efficiency

    With a radiation component of up to 89% the energy supplied is transmitted efficiently, which reduces energy consumption. The heating and cooling performance for a comfortable indoor climate is ensured.

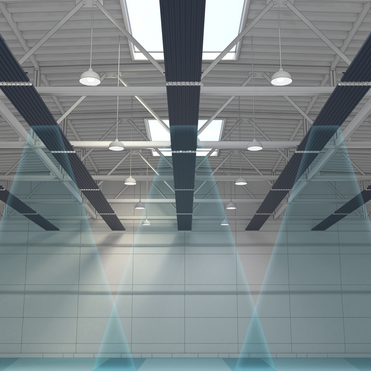

    Radiant ceiling panel ZFP, In a warehouse hall, Blue night, Heat radiation, Graphic, Drawn optics,

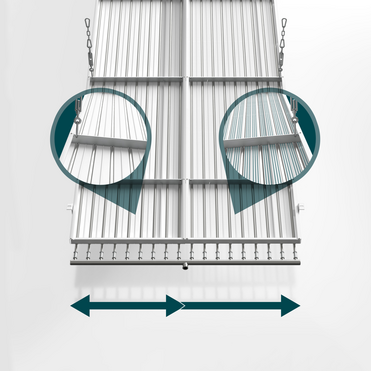

    Radiant ceiling panel ZFP, with acoustic panel, view from above, variable width

    Planning flexibility

    Thanks its modular principle, Zehnder ZFP can be customised to your needs. Either with an acoustic version to reduce noise levels, various suspension kits for different ceiling types or an adapted width from 300 to 1500 mm.

    Operational reliability

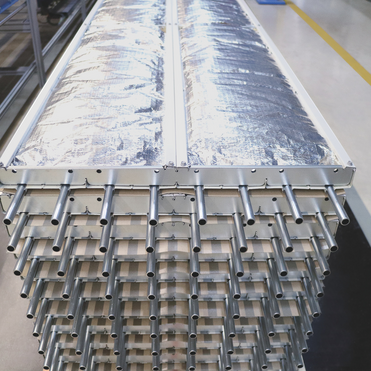

    Factory-installed insulation guarantees consistently high heating performance. The galvanization of all product components provides corrosion resistance when cooling.

    Benefits

    • flexible solutions for your poject
    • Maximum corrosion resistance due to gavanization of all parts
    • Heating and cooling possible
    • low weight
    • Efficient heating and cooling: radiative share of 80% possible
