Yucca Asym

Hydronic operation

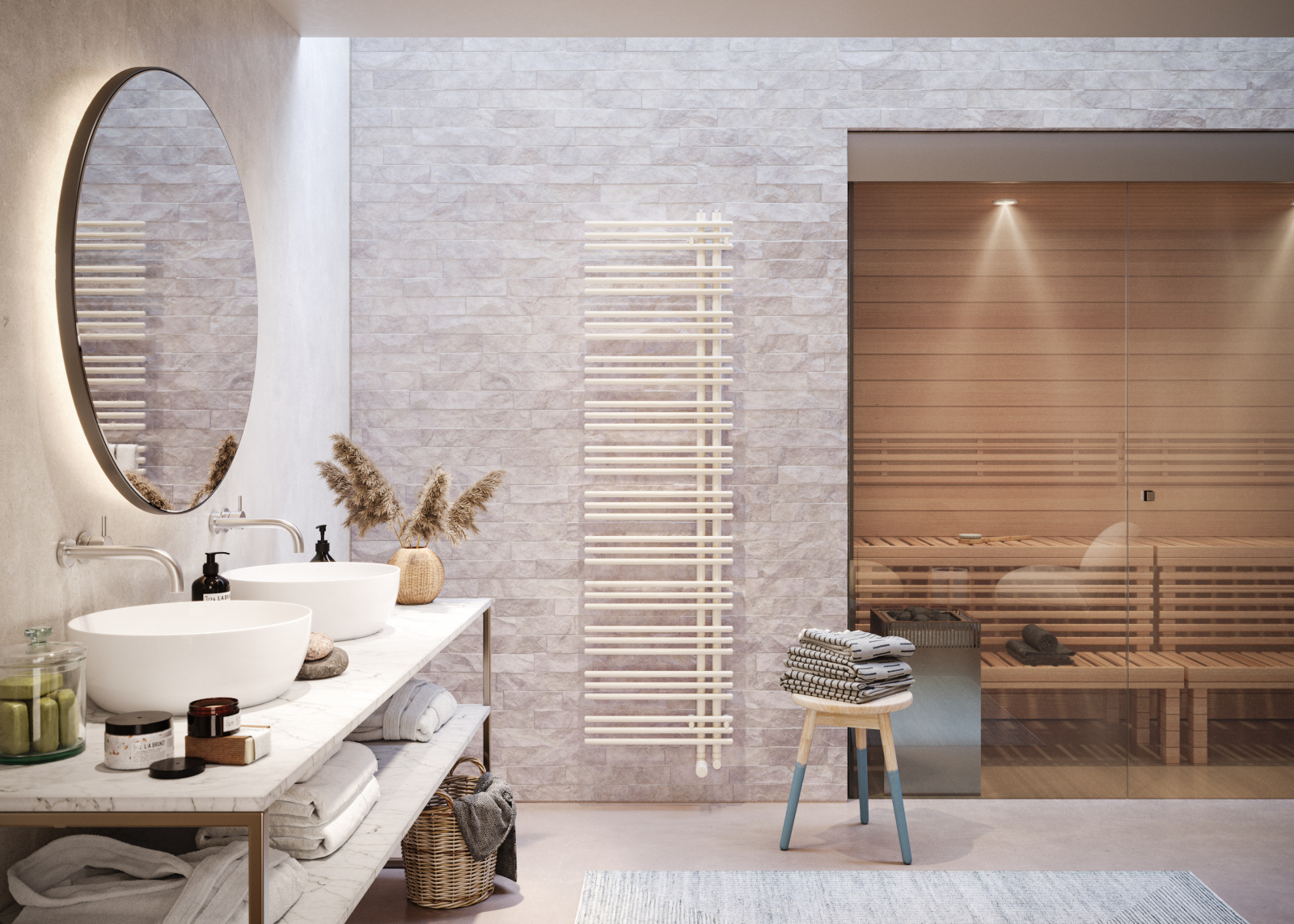

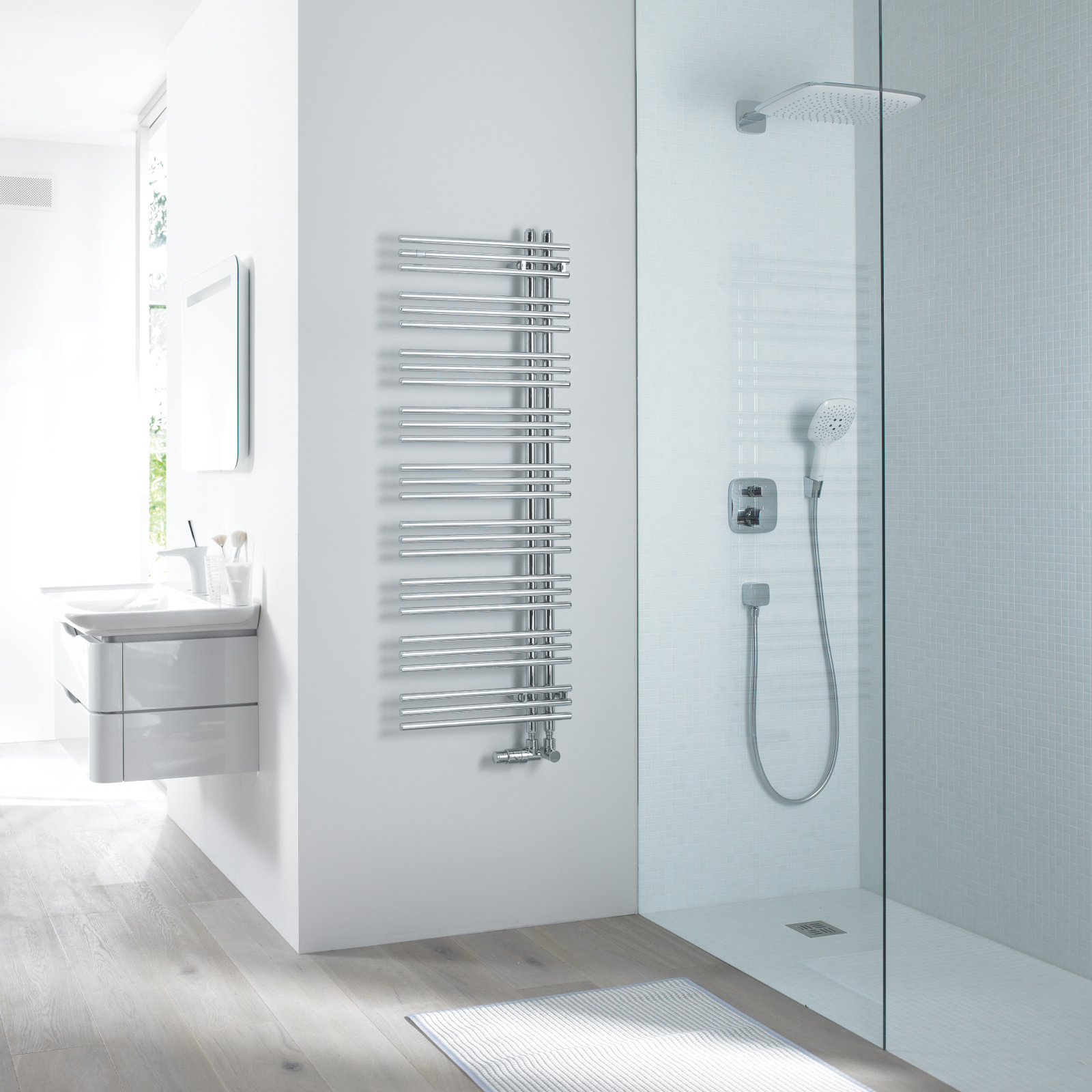

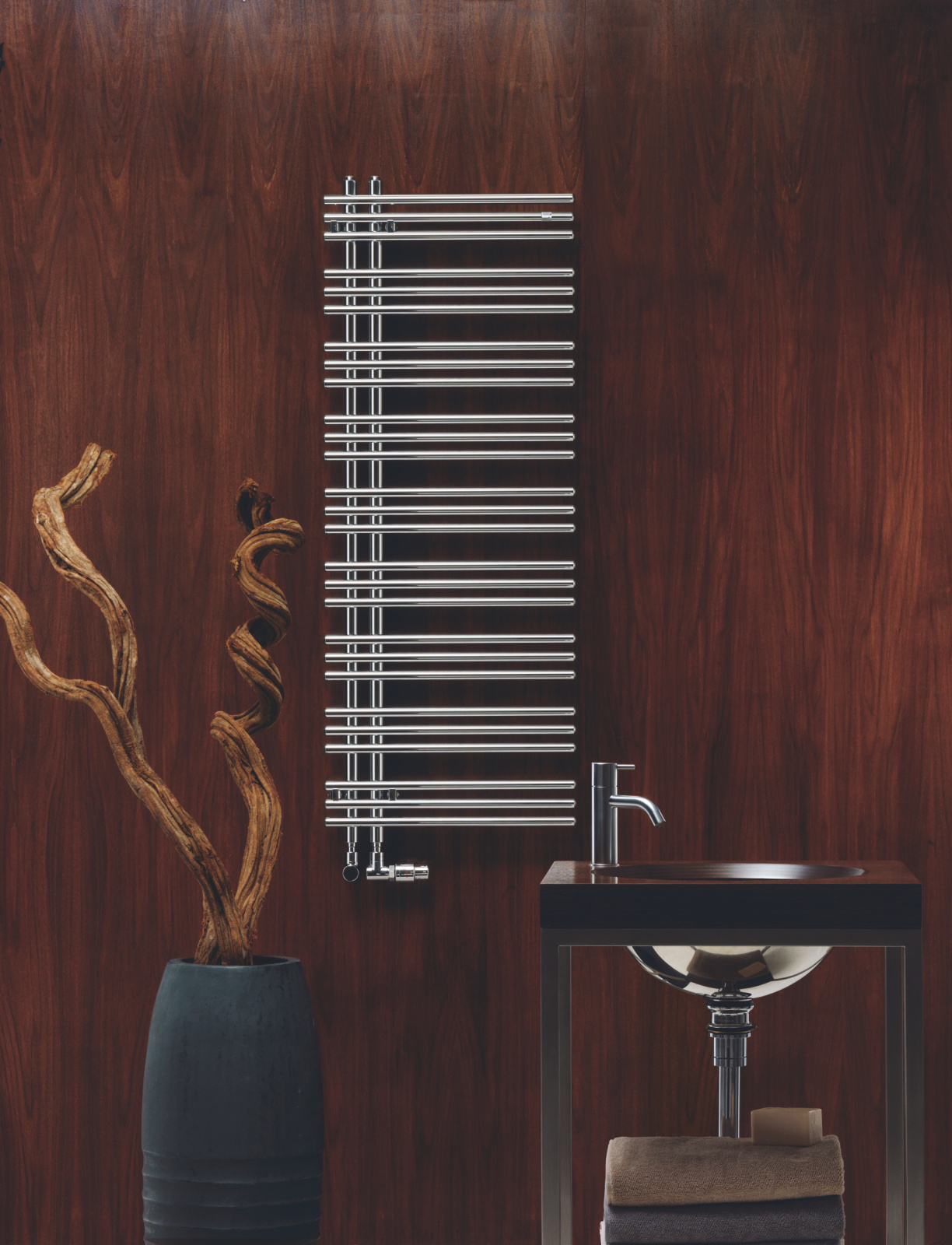

    The best quality in both design and function. With its vertical tubes, which can be positioned left or right, Zehnder Yucca Asym creates a relaxed bathroom environment. Large towels can be conveniently hung from one side. The decorative radiator is also suitable as a room divider. Available in almost any colour and finish from the Zehnder colour chart.

    Premium Collection

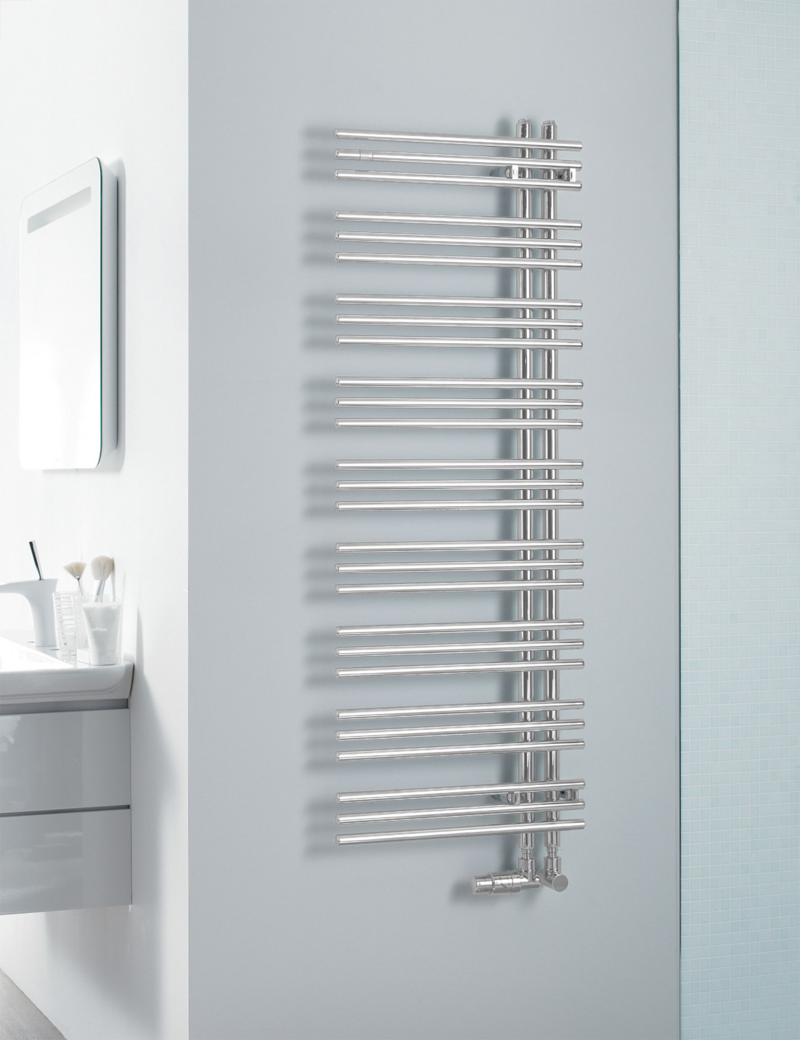

    Zehnder Yucca Asym - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Small radiator depth ideal for narrow rooms
    • Open access from both sides makes it very convenient for hanging and sliding towels in from the side
    • Special solutions support a wide range of application, such as room divider
    • Light and seamless design enhances any room
    • Easy cleaning with the lambswool cleaning brush from Zehnder
    • Rounded edges offer added safety
    • Diverse range of models with header tubes as a left- or right-hand arrangement
    • Maximum surface temperature of 65 °C ensures increased safety (chrome-plated version)

    Hydronic operation

    • Flexible installation through top connection options
    • Flexible installation due to 50 mm connection
    • Flexible right-hand or left-hand installation

    Colour System

    Zehnder Yucca Asym - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    Single-layer version
    YA-090-040 872 378 293 239 154 300
    YA-130-040 1304 378 430 351 223 300
    YA-170-040 1736 378 571 464 296 300
    YA-090-050 872 478 351 285 183 300
    YA-130-050 1304 478 517 419 268 300
    YA-170-050 1736 478 686 556 356 600
    YA-090-060 872 578 408 333 215 600
    YA-130-060 1304 578 599 486 311 600
    YA-170-060 1736 578 795 644 412 600
    Double-layer version
    YAD-090-040 872 378 435 354 227 300
    YAD-130-040 1304 378 628 508 322 600
    YAD-170-040 1736 378 825 669 421 600
    YAD-090-050 872 478 529 428 273 300
    YAD-130-050 1304 478 763 618 392 600
    YAD-170-050 1736 478 1002 810 512 900
    YAD-090-060 872 578 619 503 323 300
    YAD-130-060 1304 578 893 717 458 600
    YAD-170-060 1736 578 1173 943 599 900
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442 ΔT 50
    Chrome-plated version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    Single-layer version
    YAC-130-040 1304 378 308 251 157 300
    YAC-170-040 1736 378 408 331 207 300
    YAC-090-050 872 478 254 206 130 300
    YAC-130-050 1304 478 371 301 189 300
    YAC-170-050 1736 478 492 399 250 300
    YAC-130-060 1304 578 432 350 221 300
    YAC-170-060 1736 578 572 463 291 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442 ΔT 50
