Valve unit XE angle-angle version chrome, thermostat SH chrome, bathroom, wall mounting, QA
Premium Collection

Zehnder
Quaro

Hydronic operation
    Get in touch

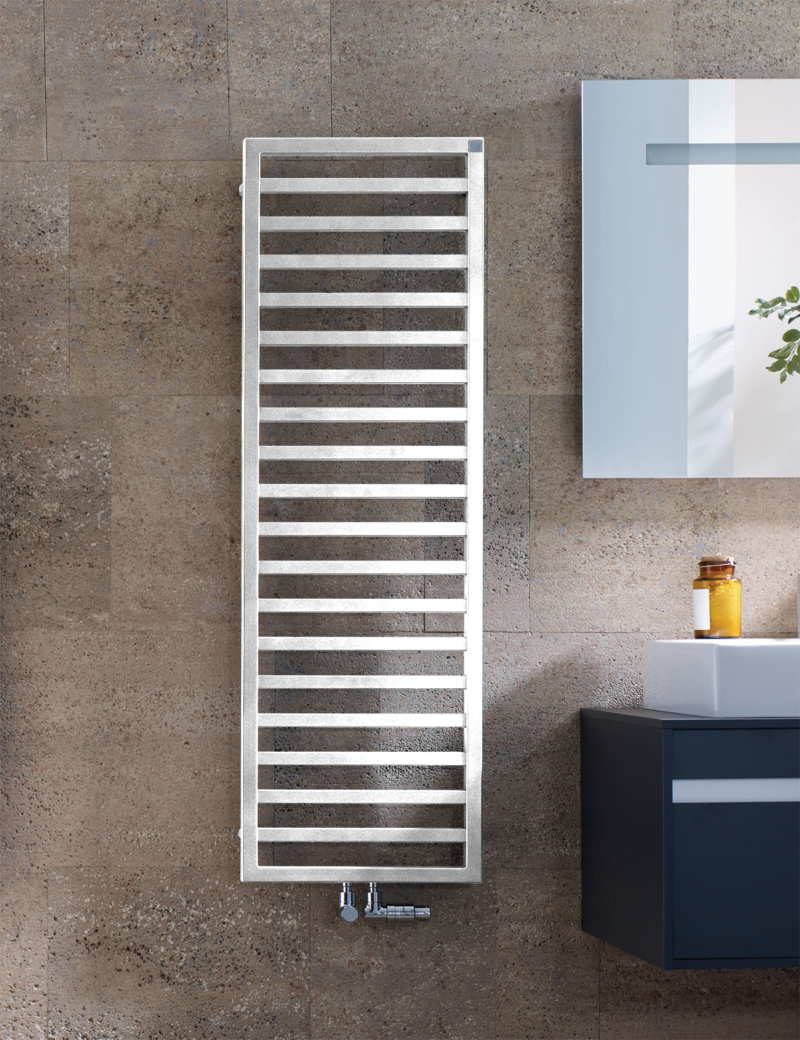

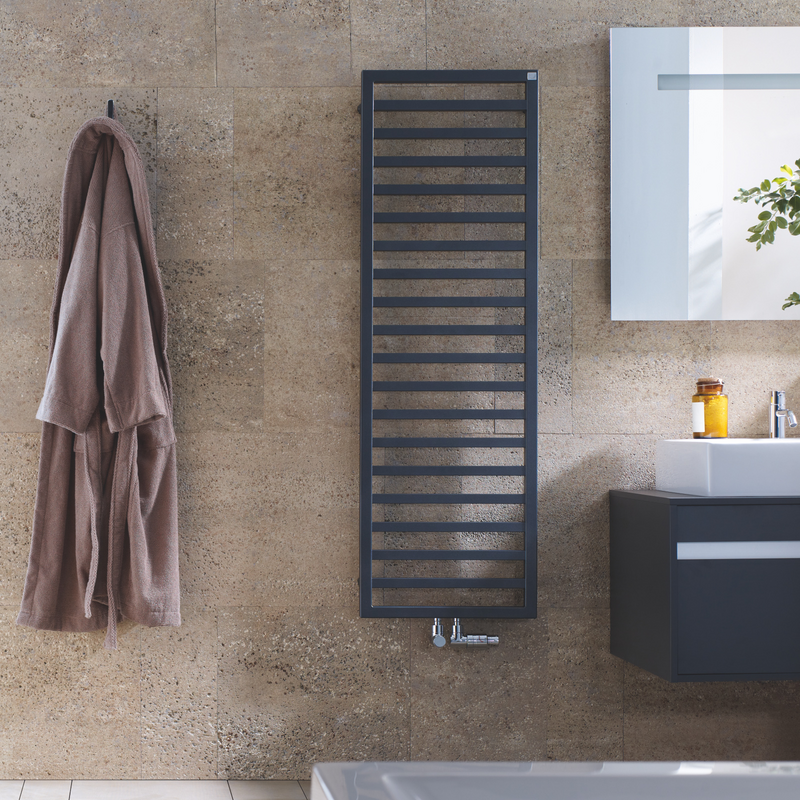

    Distinct shapes, strong, subtle design. The square design of Zehnder Quaro does not intrude but rather complements its surroundings. It is a perfect fit for any modern bathroom. Available in almost any colour and finish from the Zehnder colour chart. Timeless design through a geometric shape, which also makes for an impressive room divider.

    Show more

    Premium Collection

    Zehnder Quaro - Hydronic operation

    We also offer the following technologies

    Electric operationDual energy operation

    Benefits

    • Stylish design through straight-edged clarity
    • Ample spaces between tubes make cleaning easy
    • Discreetly concealed bracket in square design matches the radiator
    • Generous spaces between the tubes convenient for hanging towels
    • Brushed stainless steel version ensures resistance to corrosion
    Show more

    Hydronic operation

    • Flexible installation through right and left connections and 50mm centre connections

    Colour System

    Zehnder Quaro - Hydronic operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    QA-100-030 971 300 299 244 158 300
    QA-140-030 1403 300 421 345 222 300
    QA-180-030 1835 300 543 445 288 300
    QA-100-045 971 450 420 343 221 300
    QA-140-045 1403 450 590 483 312 500
    QA-180-045 1835 450 761 623 403 600
    QA-100-060 971 600 533 436 282 300
    QA-140-060 1403 600 749 613 397 600
    QA-180-060 1835 600 966 791 512 900
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Chrome-plated version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    QAC-100-030 971 300 189 153 97 –
    QAC-140-030 1403 300 270 219 138 300
    QAC-180-030 1835 300 348 282 178 300
    QAC-100-045 971 450 267 217 137 300
    QAC-140-045 1403 450 381 309 196 300
    QAC-180-045 1835 450 491 398 252 300
    QAC-100-060 971 600 341 277 176 300
    QAC-140-060 1403 600 486 394 250 300
    QAC-180-060 1835 600 627 508 322 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Stainless steel version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    QAI-100-030 971 300 229 186 119 –
    QAI-140-030 1403 300 321 261 167 300
    QAI-180-030 1835 300 415 338 215 300
    QAI-100-045 971 450 321 262 167 300
    QAI-140-045 1403 450 450 367 235 300
    QAI-180-045 1835 450 581 473 303 300
    QAI-100-060 971 600 407 332 212 300
    QAI-140-060 1403 600 572 466 298 300
    QAI-180-060 1835 600 738 601 385 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
