Radiapaneel 005
Charleston Turned, turned, hot water, horizontal
Zehnder Charleston

Zehnder
Charleston Turned

Hydronic operation
    Get in touch

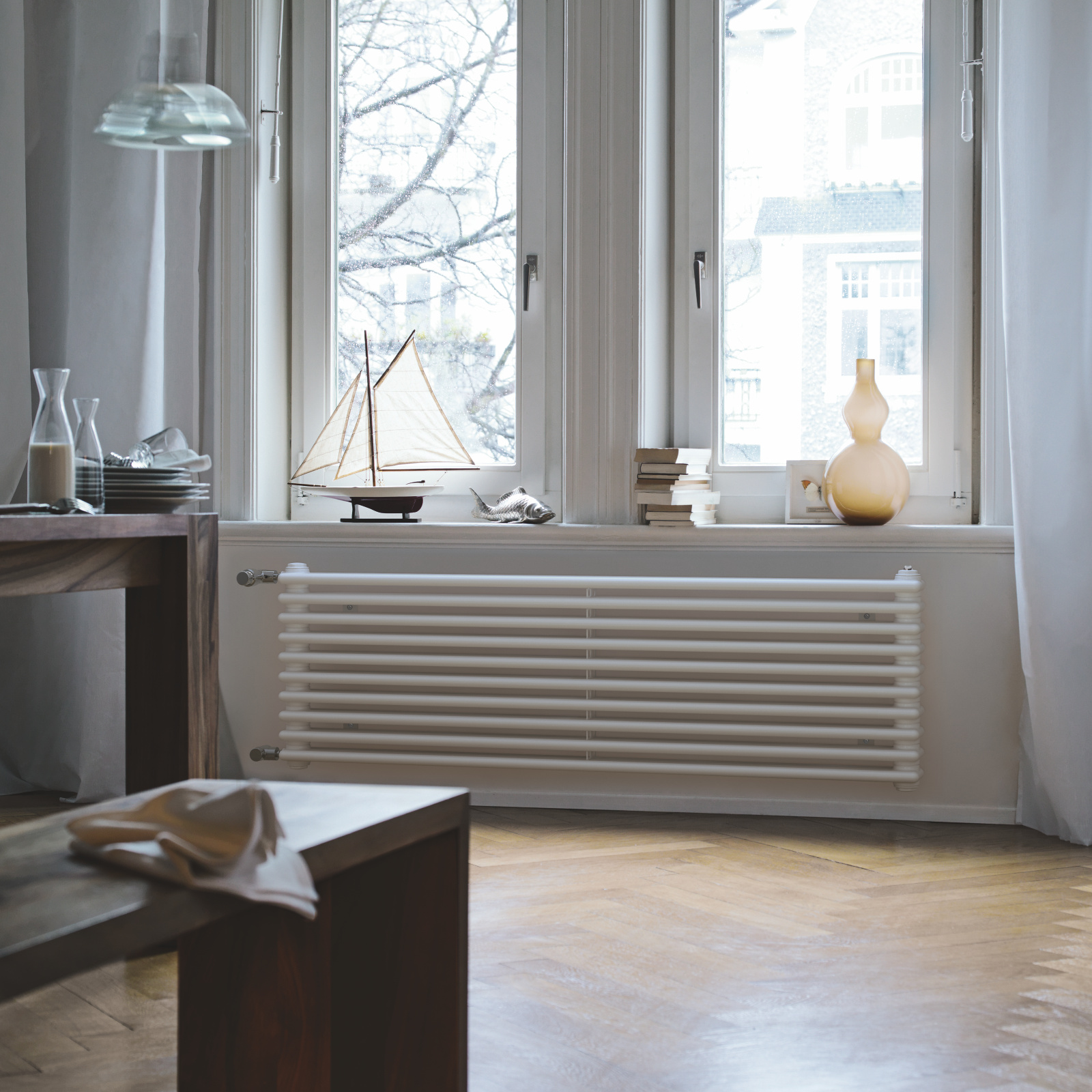

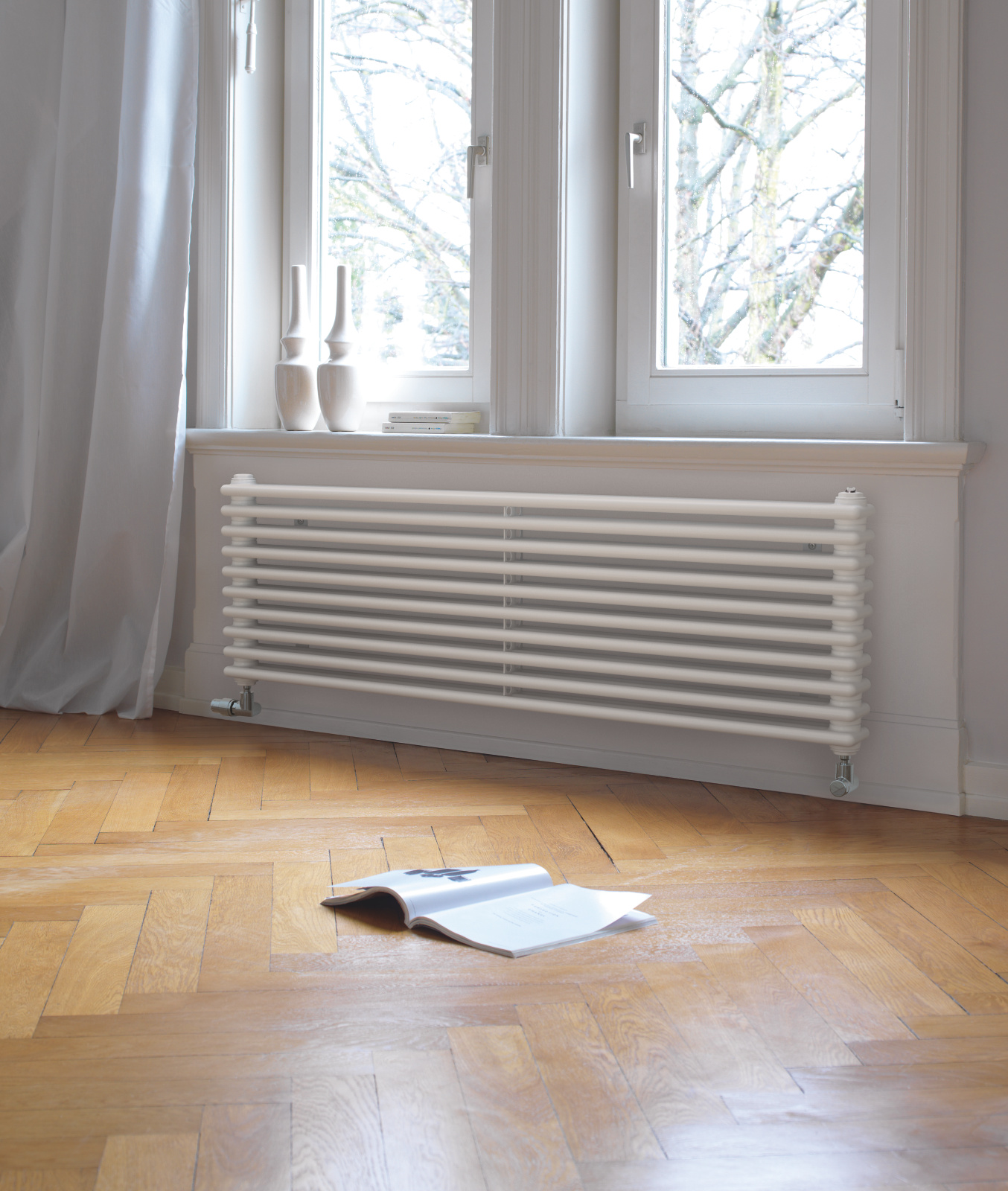

    Zehnder Charleston Turned, the original steel tubular radiator with a new look, boasts a fresh design and great performance. The orientation, rotated by 90°, lends the classic radiator a new dimension and gives Zehnder Charleston Turned an exceptionally slim design. Due to its outstanding performance, the steel tubular radiator turns large living spaces into an oasis of well-being. Available in almost any colour and finish from the Zehnder colour chart.

    Show more

    Benefits

    • Innovative design due to its orientation rotated by 90°
    • Significantly higher thermal output due to the optimal waterflow properties of the horizontal tubes
    • Easy installation via welded-on lugs in the same colour as the radiator (provided ex factory)
    • Lasting attractive looks with no tube deformation due to a welded-on centre brace in the same colour as the radiator (provided ex factory)
    • Wide range of applications due to various connection options
    • High level of thermal output ideal for old buildings with a high heat load
    • Classic, elegant design blends in with any setting
    • Easy cleaning with the lambswool cleaning brush from Zehnder
    • High proportion of radiation ensures comfort
    • Compatible with a heat pump and/or low temperature heating systems
    • Easy to clean and perfect for people suffering from allergies due to its smooth surface
    • Residue-free laser welding technology “LaZer made” guarantees maximum quality, high-end design and reliable operation of the heating system
    Show more

    Technical data

    Connection to hot water central heating system

    Painted version, 2-column
    Model H L T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm Watts Watts Watts
    T2150/6 302 1492 62 759 621 405
    T2150/8 394 1492 62 975 796 516
    T2150/10 486 1492 62 1195 973 627
    T2150/12 578 1492 62 1420 1162 757
    T2180/6 302 1792 62 924 758 495
    T2180/8 394 1792 62 1187 971 631
    T2180/10 486 1792 62 1454 1186 767
    T2180/12 578 1792 62 1729 1409 909
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Painted version, 3-column
    Model H L T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm Watts Watts Watts
    T3150/6 302 1500 100 1032 845 550
    T3150/8 394 1500 100 1318 1076 696
    T3150/10 486 1500 100 1598 1301 838
    T3150/12 578 1500 100 1871 1524 981
    T3180/6 302 1800 100 1255 1025 663
    T3180/8 394 1800 100 1604 1305 839
    T3180/10 486 1800 100 1944 1577 1007
    T3180/12 578 1800 100 2276 1854 1194
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
