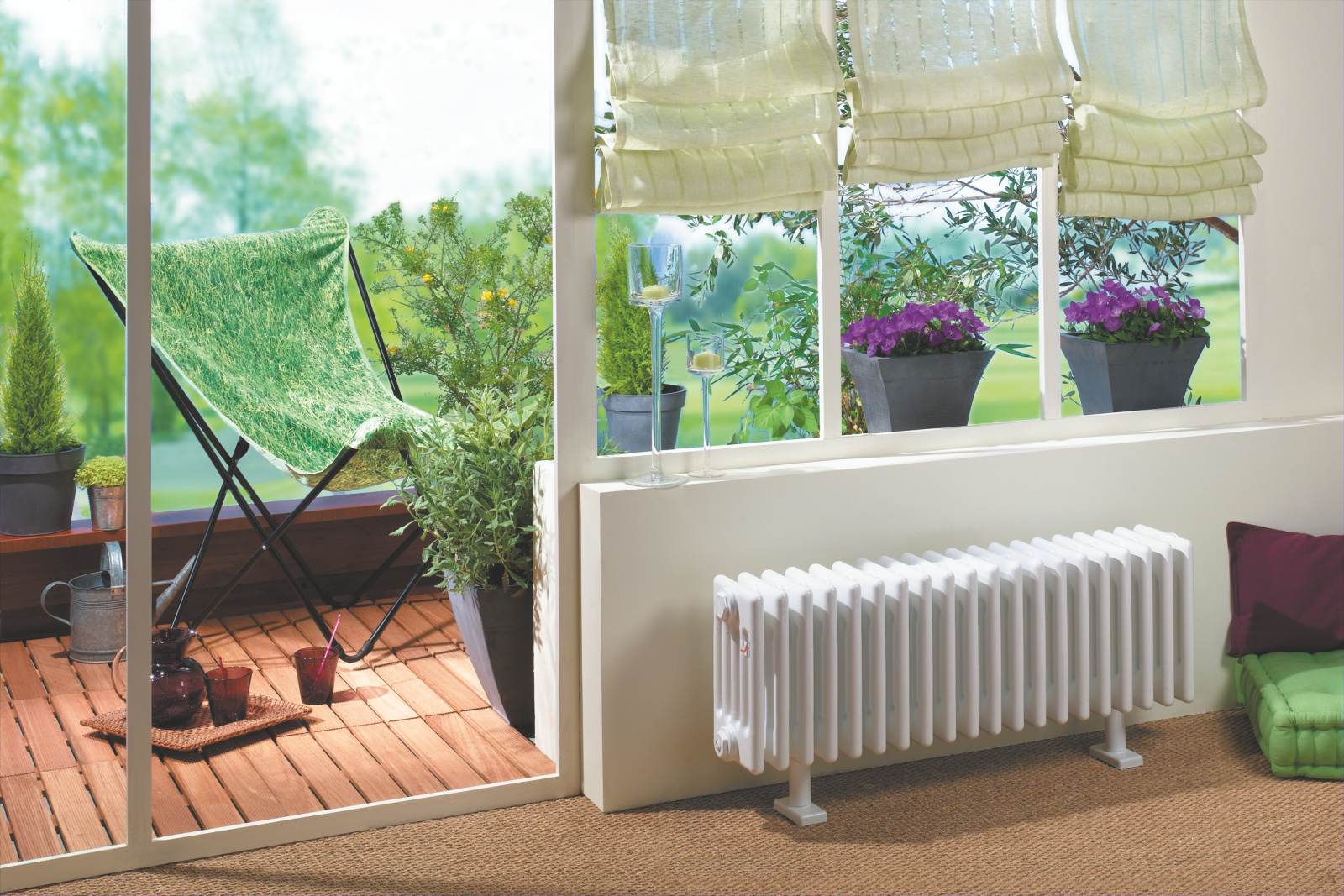

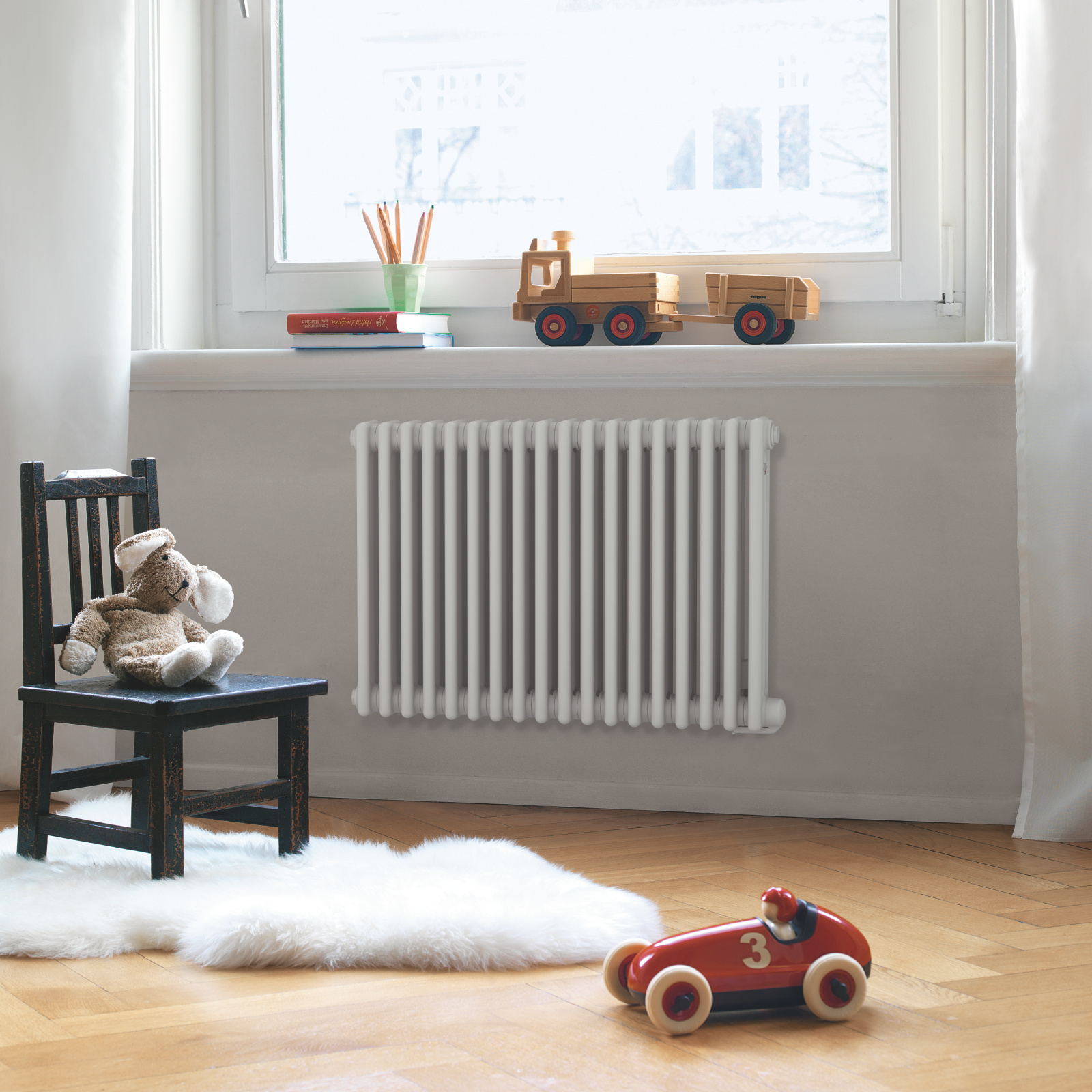

    The Zehnder Charleston Electric is an electric, oil filled multi-coloumn radiator available in 6 sizes ideal for installation in loft conversions. The complementary Zehnder Charleston Electric Plinth low level model is perfectly suited to conservatories and in front of low-level windows. Radiator with powder coating, in colour RAL 9016 as standard or in special colour.

    Show more

    Zehnder Charleston

    Zehnder Charleston Electric - Electric operation

    We also offer the following technologies

    Hydronic operation

    Benefits

    • Oil-filled multi-column electric radiator
    • Vertical steel round tubes Ø 25 mm, 3 and 5 columns versions available
    • Standard version primed and painted in RAL 9016
    • Fixing: model NZ 060-XXX: Delivered ready to install with 2 wall brackets in colour of radiator. Model NZ 030-100: Delivered ready to install with 2 welded feet in colour of radiator.
    Show more

    Electric operation

    • White control unit on the right
    • Electronic thermostat, 5 operating modes
    • Pilot cable integrated
    • Radiator filled with heat transfer liquid
    • Without plug, appliance class II
    • Supply voltage: 230 V
    • With integrated electric heating element
    • Protection class IP34

    Technical data

    Electric-only operation

    Model 3-column
    Model HT L T Power electric heating element
    mm mm mm Watts
    NZ-060-053/GF 600 460 100 500
    NZ-060-062/GF 600 552 100 750
    NZ-060-076/GF 600 690 100 1000
    NZ-060-089/GF 600 828 100 1250
    NZ-060-103/GF 600 966 100 1500
    NZ-060-131/GF 600 1242 100 2000
    H = height, HT = total height, L = length, T = depth
    Model 5-column
    Model HT L T Power electric heating element
    mm mm mm Watts
    NZ-030-100/GF 300 920 173 1000
    H = height, HT = total height, L = length, T = depth
