BankHK_Buche 015
Zehnder Charleston

Zehnder
Charleston Bench

Hydronic operation
    Get in touch

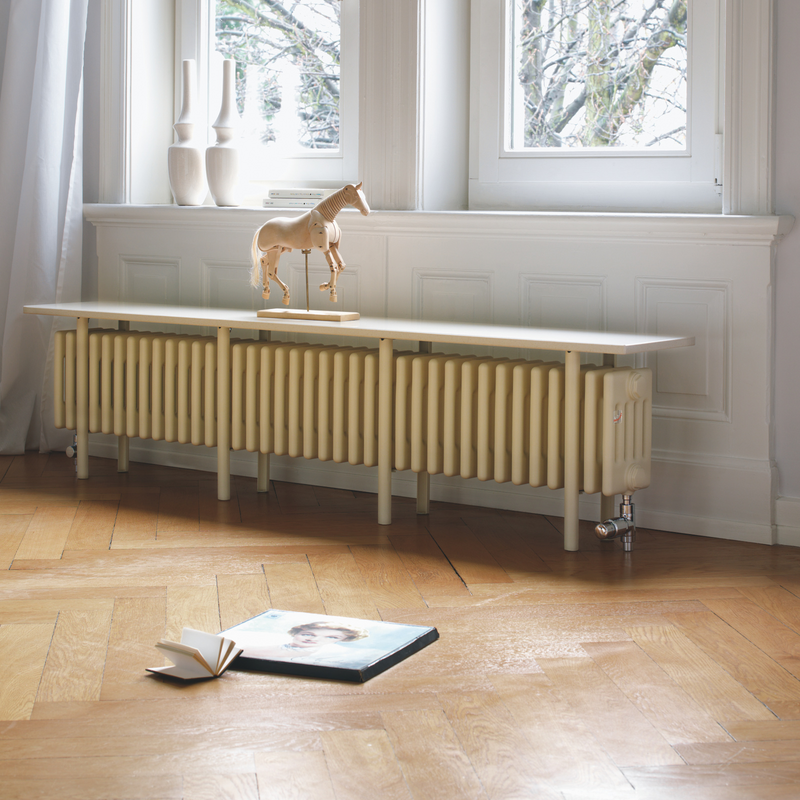

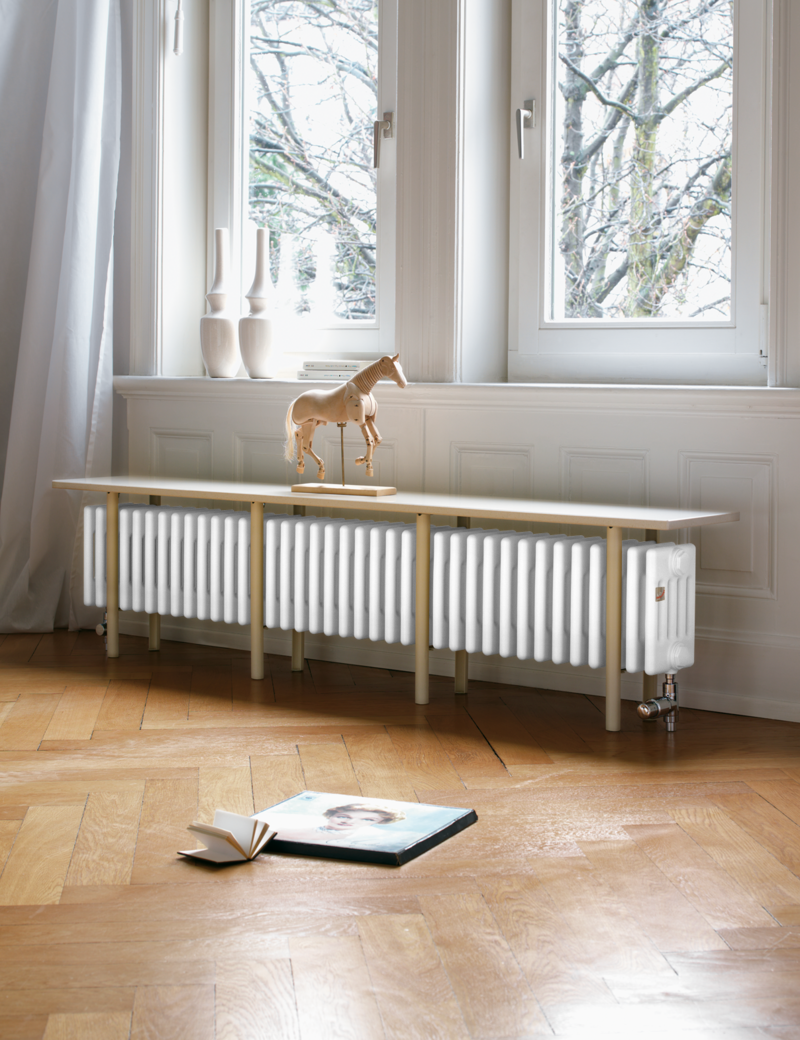

    Zehnder Charleston Bench is suitable for a variety of environments and purposes through its combination of bench, storage option and radiator. In both private and public rooms. Because every place and requirement is different, this model offers a wide range of ways to combine bench, storage option and radiator. The bench can be selected on site. Property developers can decide themselves which storage option or seat design is best. Available in almost any colour and finish from the Zehnder colour chart.

    Show more

    Benefits

    • Individuality through a large range of models and different bench seat finishes that can be chosen on site

    • Classic, elegant design blends in with any setting

    • High proportion of radiation ensures comfort

    • Stable bench, which is ideal for public buildings

    • Compatible with a heat pump and/or low-temperature systems

    • High level of heat capacity also for old buildings with a high heating load

    • Residue-free laser welding technology “LaZer made” guarantees maximum quality, high-end design and reliable operation of the heating system

    Show more

    Colour System

    Zehnder Charleston Bench - Hydronic operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521*)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523*)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529*)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550*)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Model 4-column
    Model H HT LT T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm mm Watts Watts Watts
    CB4026-22 260 430 1038 141 804 656 425
    CB4026-27 260 430 1268 141 986 805 521
    CB4026-31 260 430 1452 141 1132 924 598
    CB4026-35 260 430 1636 141 1278 1043 675
    CB4026-38 260 430 1774 141 1388 1133 733
    CB4026-44 260 430 2050 141 1607 1312 849
    CB4026-50 260 430 2326 141 1826 1490 964
    H = height, HT = total height, LT = total length, T = depth
    HT = Total height measured from finished floor to top of centre support
    75/65/20 = Nominal heat output according to EN 442
    Number of bench brackets depending on length: L = 1038 mm with 2 brackets, L = 1268 - 1636 mm with 3 brackets, L = 1774 - 2326 mm with 4 brackets
    Model 5-column
    Model H HT LT T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm mm Watts Watts Watts
    CB5026-22 260 430 1038 178 993 810 524
    CB5026-27 260 430 1268 178 1218 994 643
    CB5026-31 260 430 1452 178 1399 1142 739
    CB5026-35 260 430 1636 178 1579 1289 834
    CB5026-38 260 430 1774 178 1715 1400 906
    CB5026-44 260 430 2050 178 1986 1621 1049
    CB5026-50 260 430 2326 178 2256 1841 1191
    H = height, HT = total height, LT = total length, T = depth
    HT = Total height measured from finished floor to top of centre support
    75/65/20 = Nominal heat output according to EN 442
    Number of bench brackets depending on length: L = 1038 mm with 2 brackets, L = 1268 - 1636 mm with 3 brackets, L = 1774 - 2326 mm with 4 brackets
    Model 6-column
    Model H HT LT T Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm mm mm Watts Watts Watts
    CB6026-22 260 430 1038 215 1177 957 615
    CB6026-27 260 430 1268 215 1445 1176 755
    CB6026-31 260 430 1452 215 1659 1350 867
    CB6026-35 260 430 1636 215 1873 1524 979
    CB6026-38 260 430 1774 215 2033 1654 1063
    CB6026-44 260 430 2050 215 2354 1915 1230
    CB6026-50 260 430 2326 215 2675 2176 1398
    H = height, HT = total height, LT = total length, T = depth
    HT = Total height measured from finished floor to top of centre support
    75/65/20 = Nominal heat output according to EN 442
    Number of bench brackets depending on length: L = 1038 mm with 2 brackets, L = 1268 - 1636 mm with 3 brackets, L = 1774 - 2326 mm with 4 brackets
