Rendering Zehnder Forma Spa Asym Decorative radiator

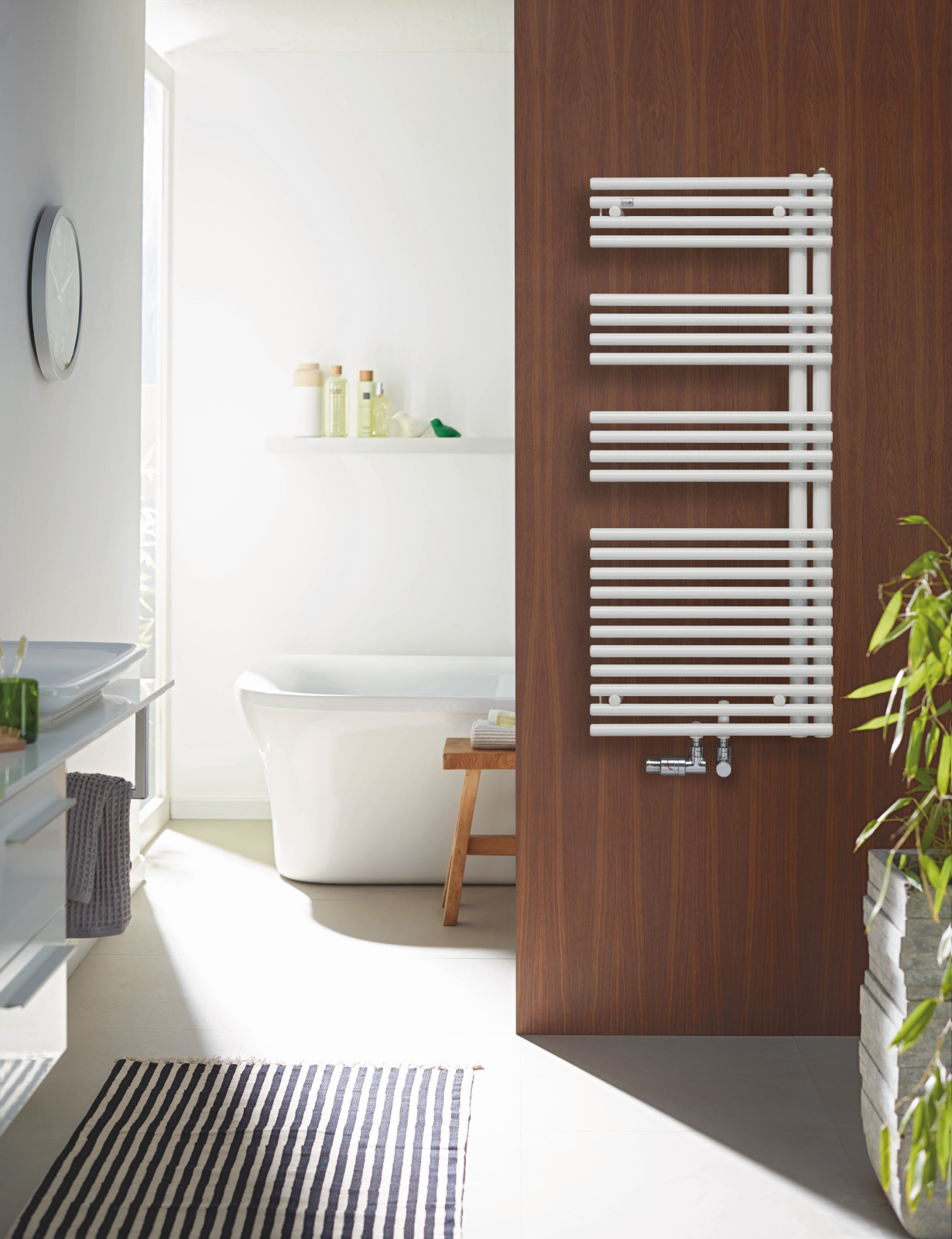

Rendering Zehnder Forma Spa Asym Decorative radiator Front view
Quality Collection

Zehnder
Forma Asym

Hydronic operation
    Get in touch

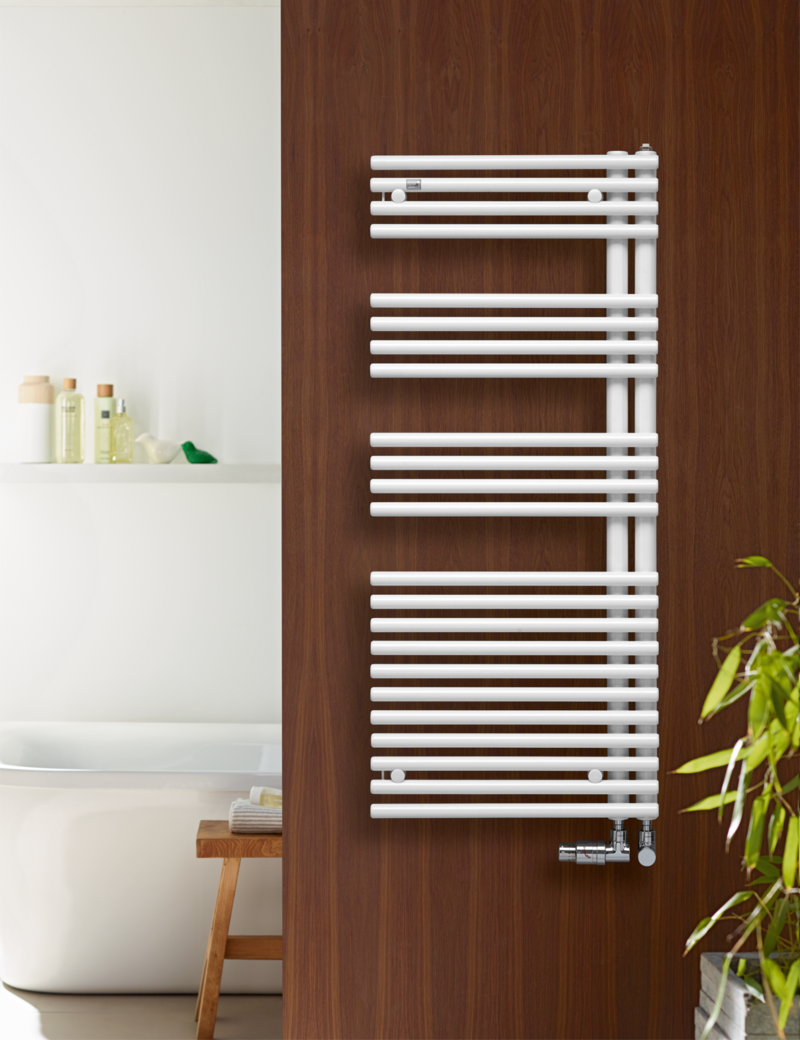

    A pleasant heat and a relaxed look for your bathroom. The vertical tubes positioned on the right or left of Zehnder Forma Asym allow you to conveniently slide in towels from one side. Available in almost any colour and finish from the Zehnder colour chart.

    Show more

    Quality Collection

    Zehnder Forma Asym - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Relaxed look through cross-connected tubes

    • Open access from both sides makes it very convenient for hanging and sliding towels in from the side

    • Large wall clearance for snuggly towels

    • Easy cleaning with the lambswool cleaning brush from Zehnder

    • Rounded edges offer added safety

    • Diverse range of models with header tubes as a left- or right-hand arrangement

    • The optional connection fitting provides the flexibility for all types of connection situations

    Show more

    Hydronic operation

    • Flexible installation through top connection options

    • Flexible installation through right and left connection options

    Colour System

    Zehnder Forma Asym - Hydronic operation
    Traffic White (9016* / RAL 9016)
    Standard
    Traffic White (9016* / RAL 9016)
    Warm Colors Core
    White Quartz (0521)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Warm Colors Trends
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    Cool Colors Core
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Cool Colors Trends
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    Traffic White (9016* / RAL 9016)
    White Quartz (0521)
    Pure White (9010* / RAL 9010)
    Cement Grey (7233 / RAL 7033)
    Edelweiss (0067)
    Cream (9001* / RAL 9001)
    Telegrey 4 (7247 / RAL 7047)
    Beige Quartz (0523)
    Golden Sand (0258)
    Yellow Grey (7234 / RAL 7034)
    Pearl Beige (1235 / RAL 1035)
    Beach Gold (0272)
    Concrete Grey (0265)
    Beige Grey (0267)
    Bronze (0276)
    Brown Quartz (0529)
    Dark Brown (0270)
    Grey Aluminium (9007*)
    Anthracite (0346*)
    Umbra Grey (7222 / RAL 7022)
    Volcanic (0336*)
    Pastel Green (6219 / RAL 6019)
    Reseda Green (6211 / RAL 6011)
    Olive Green (6203 / RAL 6003)
    Terracotta Faded (0299)
    Terracotta (0292)
    Ruby Red (3003* / RAL 3003)
    White Matt (0556)
    Light Beige (0253)
    Light Grey (0262)
    White Aluminium (9006*)
    Light Jeans (0264)
    Titane (0335*)
    Inox Look (0332*)
    Telegrey 2 (7246 / RAL 7046)
    Blue Grey (7231 / RAL 7031)
    Anthracite Grey (7016* / RAL 7016)
    Black Quartz (0550)
    Black Matt (0557)
    Traffic Black (9217 / RAL 9017)
    Jet Black (9005* / RAL 9005)
    Pastel Blue (5224 / RAL 5024)
    Pigeon Blue (5214 / RAL 5014)
    Gentian Blue (5210 / RAL 5010)
    Sapphire Blue (5203 / RAL 5003)
    Blue Night (0289)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Right-hand version
    LFAR-120-050 1161 496 547 389 446 237 285
    LFAR-150-050 1441 496 672 475 546 288 347
    LFAR-170-050 1681 496 778 552 633 335 404
    LFAR-120-060 1161 596 628 446 512 272 327
    LFAR-150-060 1441 596 772 544 626 328 396
    LFAR-170-060 1681 596 894 634 727 385 464
    Left-hand version
    LFAL-120-050 1161 496 547 389 446 237 285
    LFAL-150-050 1441 496 672 475 546 288 347
    LFAL-170-050 1681 496 778 552 633 335 404
    LFAL-120-060 1161 596 628 446 512 272 327
    LFAL-150-060 1441 596 772 544 626 328 396
    LFAL-170-060 1681 596 894 634 727 385 464
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Central connection 50 mm
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts Watts
    Right-hand version
    LFAR-120-050-05 1161 496 547 389 446 237 285 300
    LFAR-150-050-05 1441 496 672 475 546 288 347 600
    LFAR-170-050-05 1681 496 778 552 633 335 404 600
    LFAR-120-060-05 1161 596 628 446 512 272 327 600
    LFAR-150-060-05 1681 596 772 544 727 328 396 600
    LFAR-170-060-05 1441 596 894 634 626 385 464 900
    Left-hand version
    LFAL-120-050-05 1161 469 547 389 446 237 285 300
    LFAL-150-050-05 1441 496 672 475 546 288 347 600
    LFAL-170-050-05 1681 469 778 552 633 335 404 600
    LFAL-120-060-05 1161 596 628 446 512 272 327 600
    LFAL-150-060-05 1681 596 772 544 727 328 396 600
    LFAL-170-060-05 1441 596 894 634 626 385 464 900
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
