Aura Bow

Hydronic operation
    Get in touch

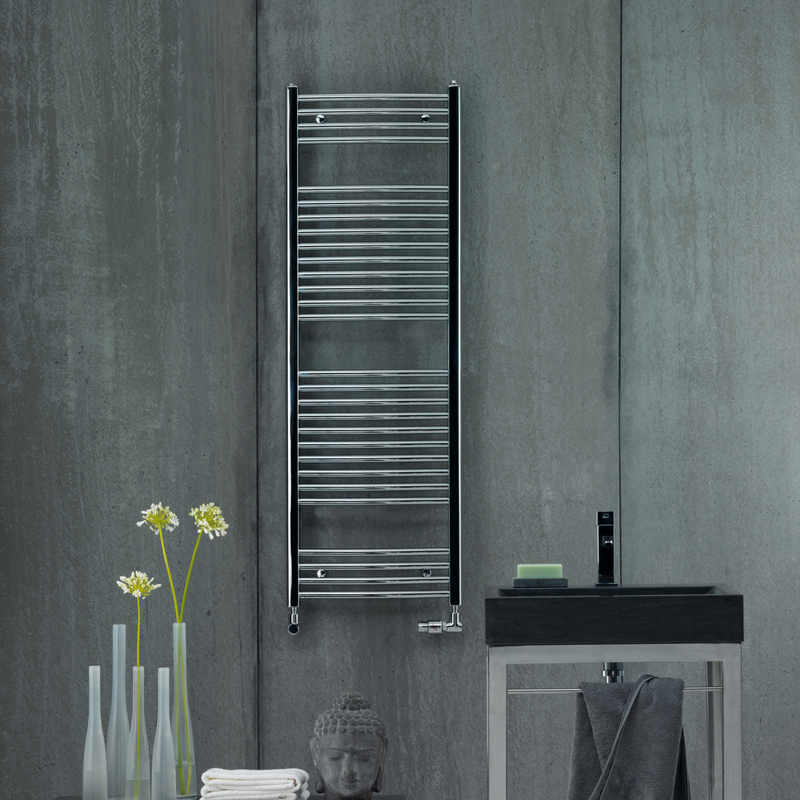

    Large spaces between the tubes and curved lines. Every detail of Zehnder Aura Bow is perfectly designed with modern bathrooms in mind. The decorative radiator for hot water central heating is available in white and with a high-quality chrome finish.

    Show more

    Benefits

    • D-profile header tube creates harmonious design
    • Ample spaces between tubes make cleaning easy
    • Generous spaces between the tubes convenient for hanging towels
    • Elegant design in high-quality chrome
    • Small radiator depth ideal for narrow bathrooms
    Show more

    Hydronic operation

    • Flexible installation through right and left connection options
    • Available with Zehnder Vario connection fitting for an unobtrusive and elegantly concealed connection system
    • Flexible installation due to 50mm centre connections

    Technical data

    Connection to hot water central heating system

    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts
    Connection from bottom
    PBTCN-080-050 775 494 230 186 119
    PBTCN-120-050 1217 494 330 268 169
    PBTCN-150-050 1469 494 407 329 209
    PBTCN-180-050 1856 494 513 417 262
    PBTCN-080-060 775 595 271 224 142
    PBTCN-120-060 1217 595 390 315 201
    PBTCN-150-060 1469 595 481 391 248
    PBTCN-180-060 1856 595 607 490 312
    Centre connection 50 mm
    PBTCN-080-050-05 775 494 229 – 119
    PBTCN-120-050-05 1217 494 331 – 171
    PBTCN-150-050-05 1469 494 406 – 210
    PBTCN-180-050-05 1856 494 514 – 265
    PBTCN-080-060-05 775 595 274 224 145
    PBTCN-120-060-05 1217 595 388 315 202
    PBTCN-150-060-05 1469 595 481 391 250
    PBTCN-180-060-05 1856 595 604 490 313
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts
    Connection from bottom
    PBTN-080-050 775 496 357 294 193
    PBTN-120-050 1217 496 511 418 273
    PBTN-150-050 1469 496 629 514 334
    PBTN-180-050 1856 496 786 643 417
    PBTN-080-060 775 595 420 346 228
    PBTN-120-060 1217 595 595 487 317
    PBTN-150-060 1469 595 737 603 393
    PBTN-180-060 1856 595 922 754 489
    Centre connection 50 mm
    PBTN-080-050-05 775 494 357 294 193
    PBTN-120-050-05 1217 494 511 418 273
    PBTN-150-050-05 1469 494 629 514 334
    PBTN-180-050-05 1856 494 786 643 417
    PBTN-080-060-05 775 595 420 346 229
    PBTN-120-060-05 1217 595 595 487 317
    PBTN-150-060-05 1469 595 737 603 393
    PBTN-180-060-05 1856 595 922 754 489
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
