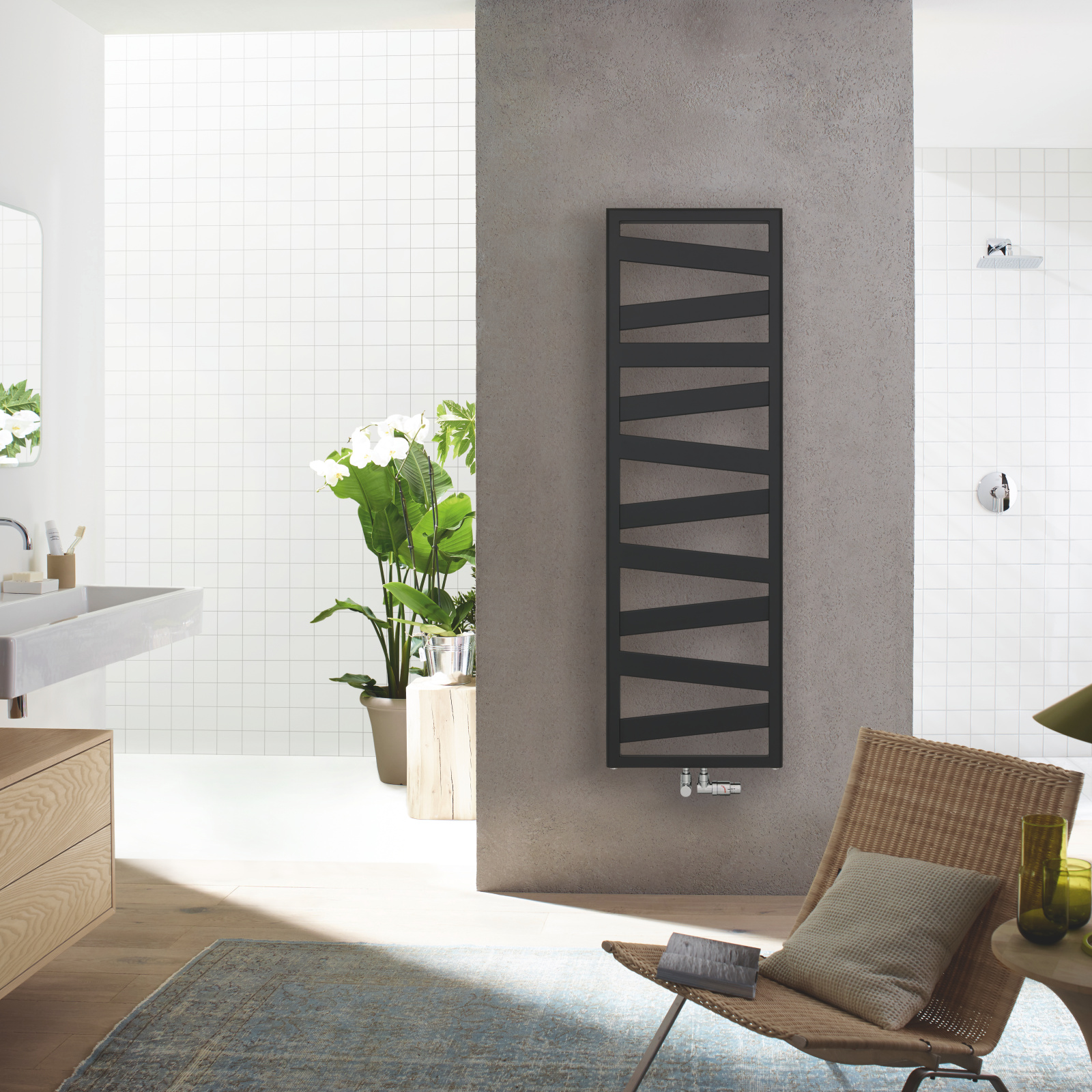

Rendering Decorative radiator

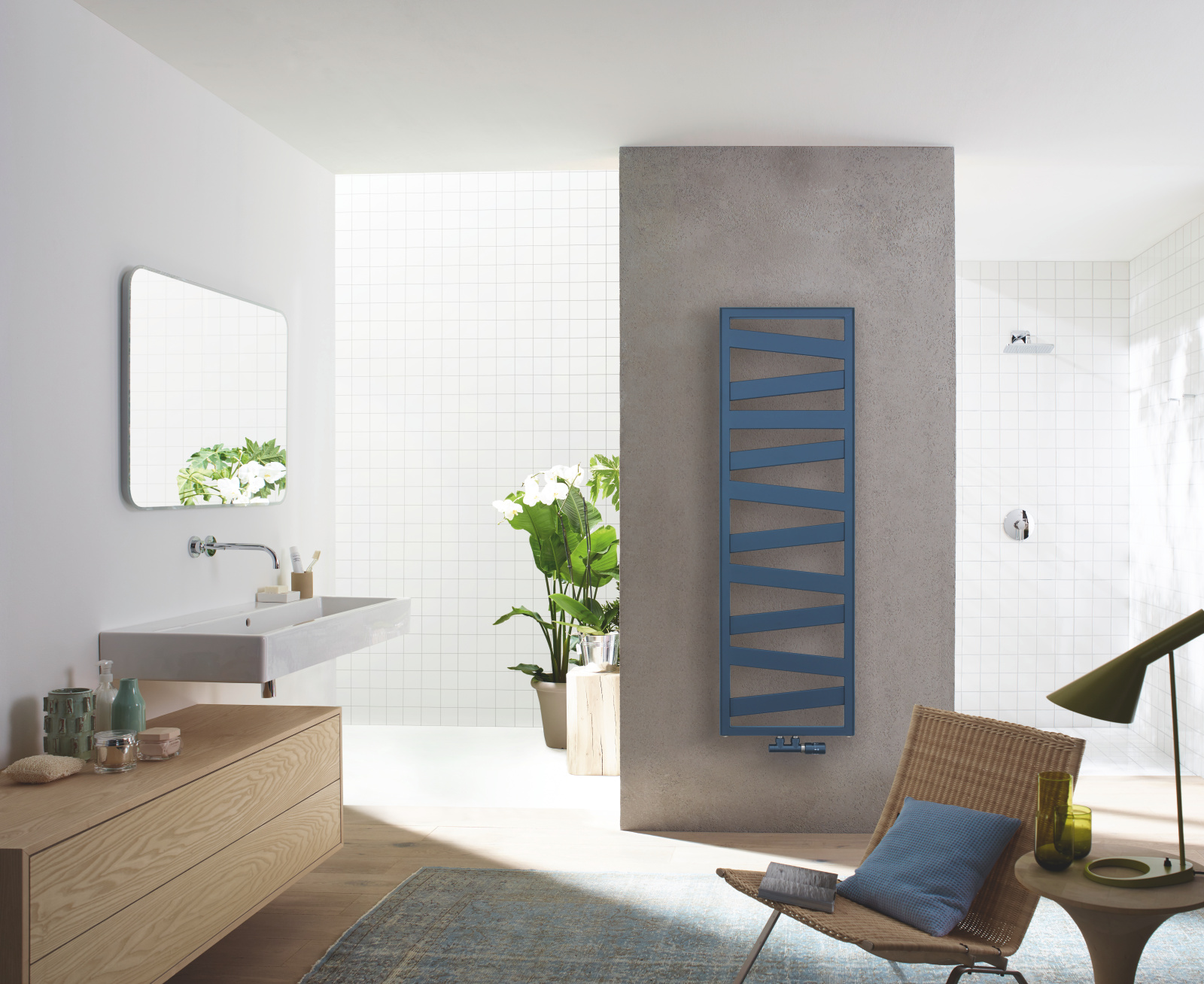

Rendering Zehnder Ribbon Decorative radiator Front view

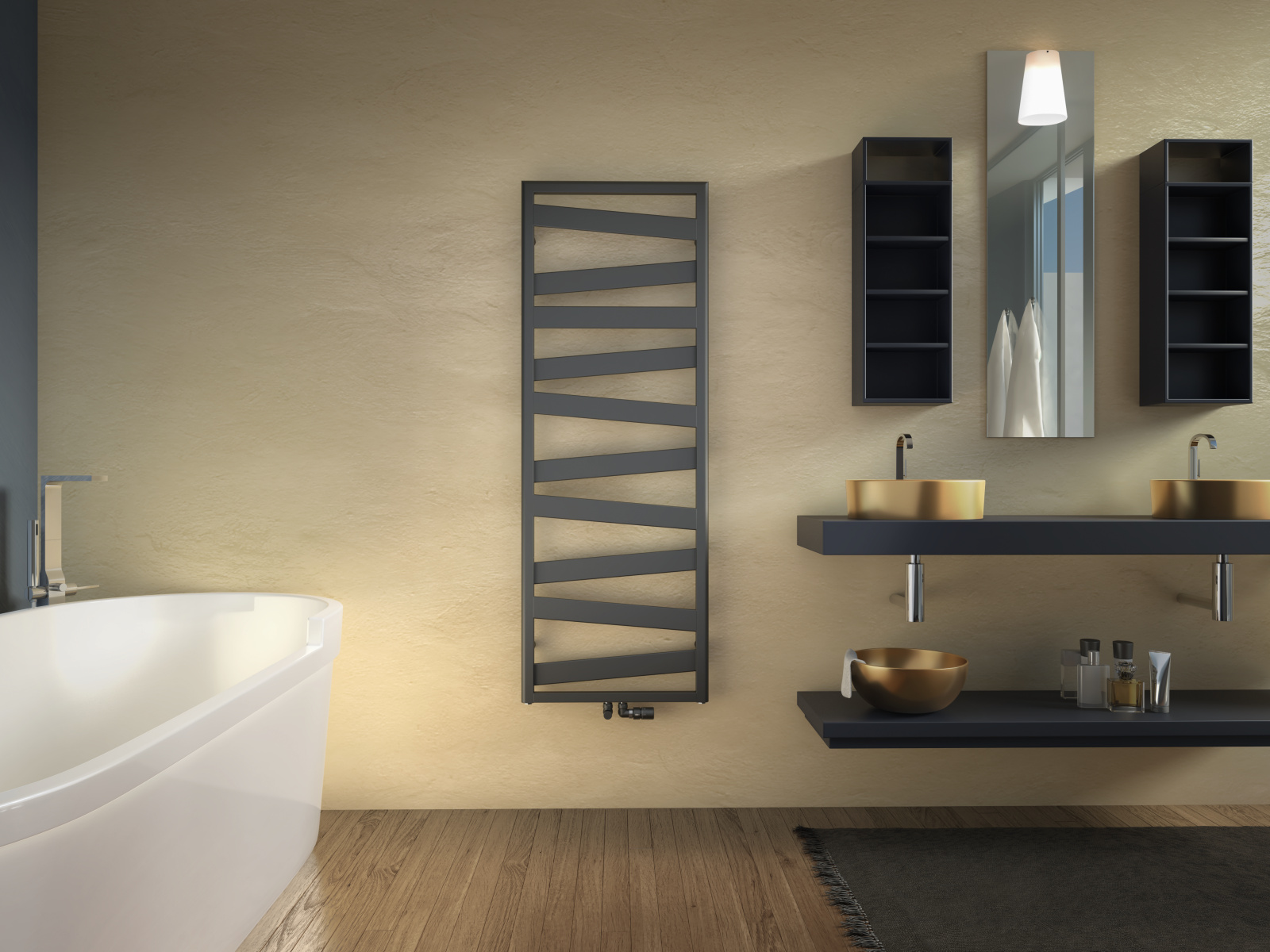

Rendering Zehnder Ribbon Decorative radiator Front view
Premium Collection

Zehnder
Kazeane

Hydronic operation

    Like a steel band that wraps around the bathroom radiator, Zehnder Kazeane impresses with its modern design and practicality. Its oblique rungs are inspired by architectural structures with multiple levels. Large spaces provide the whole family with plenty of room to hang several towels. This linking of form and function transforms Zehnder Kazeane into a radiator that invites comfort and class into the bathroom. Available in any colour and finish from the Zehnder colour chart.

    Premium Collection

    Zehnder Kazeane - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Modern design with diagonal flat tubes

    • Perfect for drying several towels – ideal for families

    • Ample spaces between tubes make cleaning easy

    Hydronic operation

    • Flexible installation due to 50 mm centre connections

    • Flexible installation through right and left connections

    Colour System

    Zehnder Kazeane - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 70/55/24 °C 55/45/20 °C 55/45/24 °C
    mm mm W W W W W W
    RB-100-050 965 500 398 325 288 211 177 300
    RB-100-060 1017 600 473 386 341 250 209 300
    RB-130-050 1266 500 509 416 368 271 227 300
    RB-130-060 1340 600 608 497 439 322 270 600
    RB-160-050 1567 500 621 508 450 330 277 600
    RB-170-060 1661 600 743 608 538 395 331 600
    RB-180-050 1823 500 723 591 522 383 320 600
    RB-190-060 1930 600 847 692 611 448 375 600
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
