Bathroom Essentials

Zehnder
Zeta

Hydronic operation

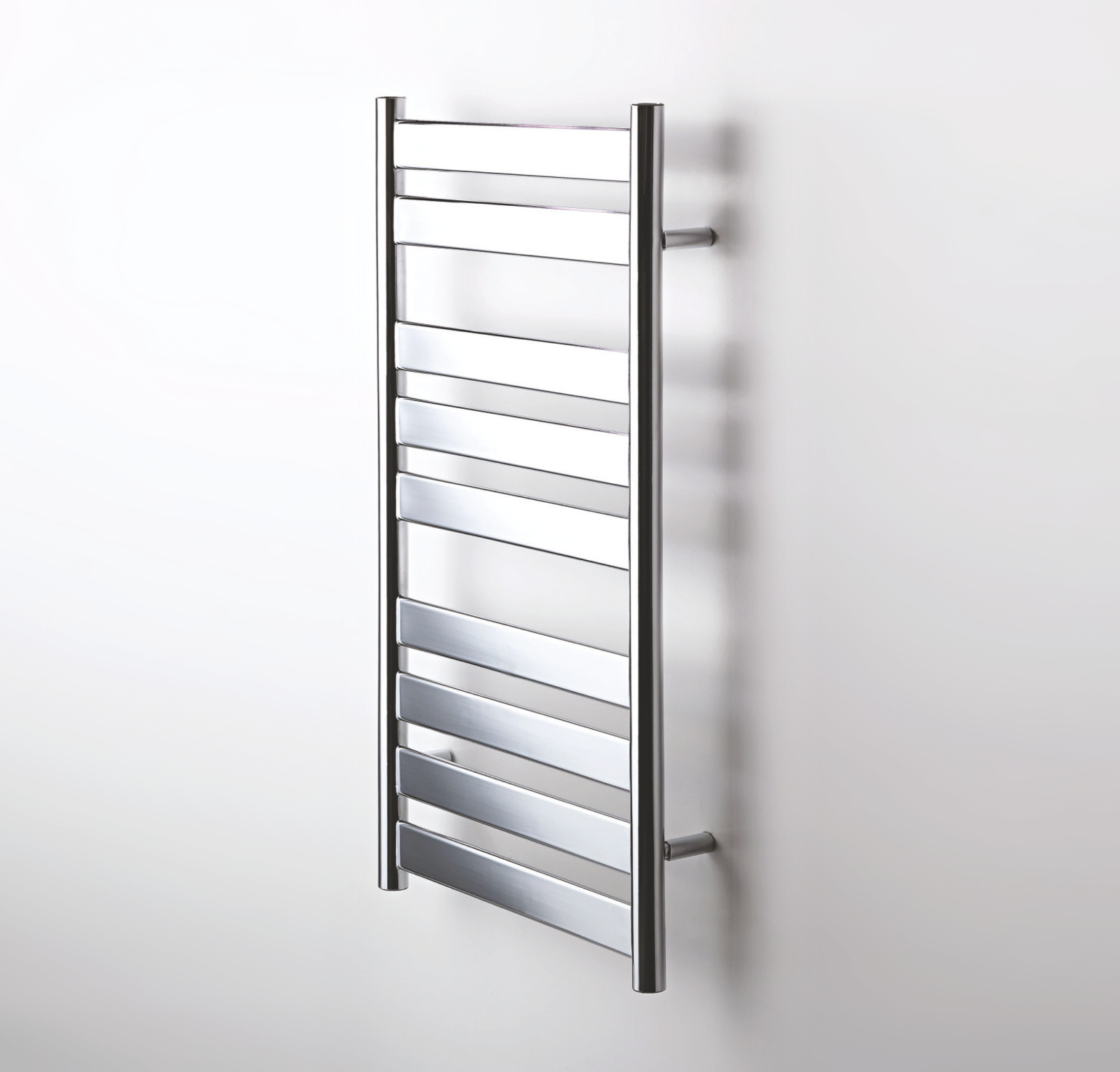

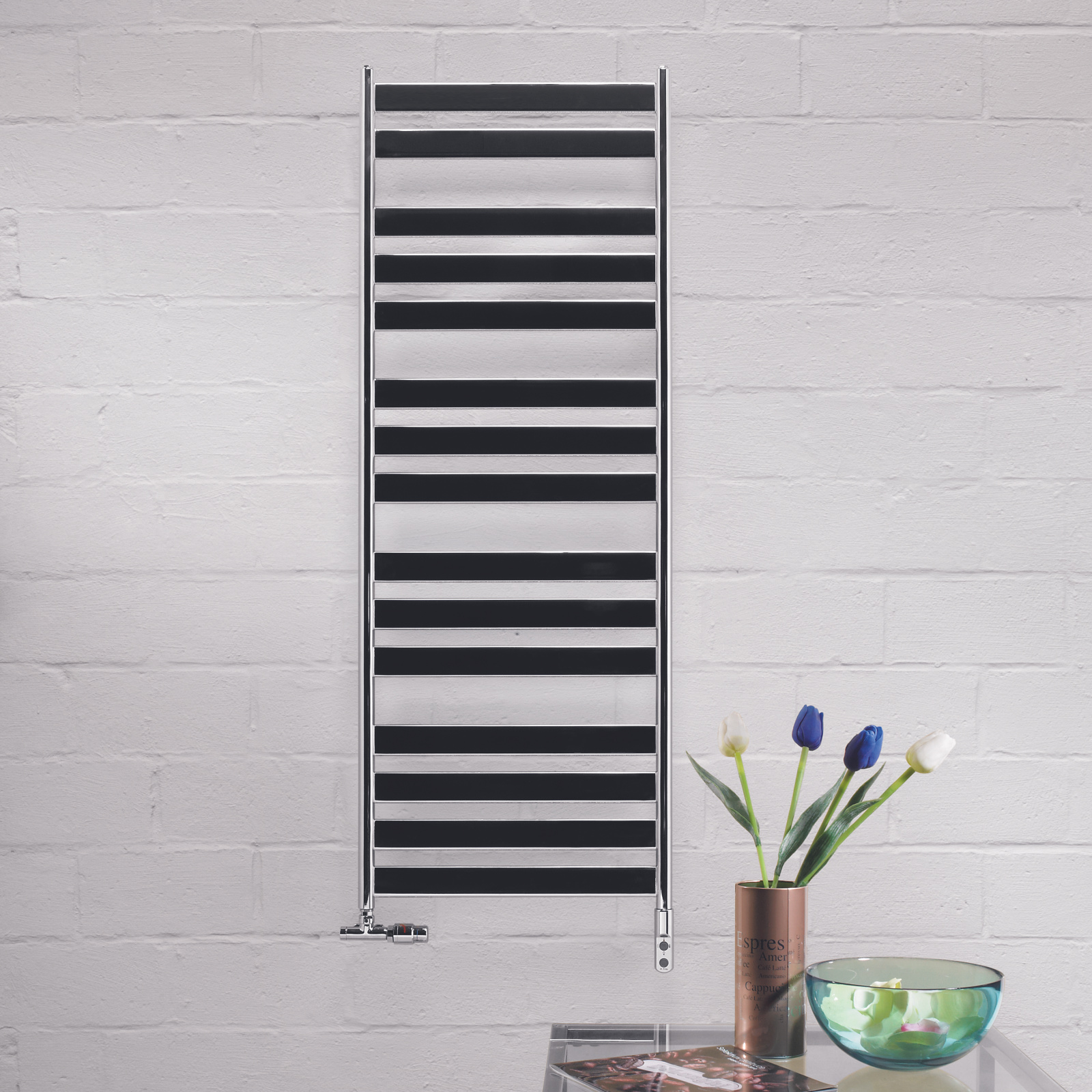

    Subtle elegance and clear lines. With the flat design of its horizontal tube elements, Zehnder Zeta combines form and function in the bathroom. The generous clearance between the sets of tubes makes hanging and warming towels easy. The radiator is available in white and with a high-quality chrome finish.

    Bathroom Essentials

    Zehnder Zeta - Hydronic operation

    We also offer the following technologies

    Electric operation

    Benefits

    • Timeless design creates an aesthetic accent
    • Generous spaces between the tubes convenient for hanging towels
    • Ample spaces between tubes make cleaning easy
    • Ideal for niches and small rooms thanks to its small wall clearance
    • Elegant design in high-quality chrome
    • Timeless design with square headers is ideal for classic bathrooms
    • Replaceable flow and return makes installation flexible
    • Connection options guarantee short installation times for renovations

    Hydronic operation

    • Flexible installation through right and left connection options

    Technical data

    Connection to hot water central heating system

    Chrome-plated version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts
    ZETA-PQ6C-080-050 1200 500 302 245 157
    ZETA-PQ6C-120-050 1200 600 350 285 184
    ZETA-PQ6C-160-050 1600 500 642 526 343
    ZETA-PQ6C-080-060 1600 600 642 526 343
    ZETA-PQ6C-120-060 1600 500 395 321 206
    ZETA-PQ6C-160-060 1600 600 457 372 239
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H L Heat output
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts
    ZETA-PQ6-080-050 800 500 322 263 172
    ZETA-PQ6-095-050 950 500 381 202
    ZETA-PQ6-120-050 800 600 377 309 202
    ZETA-PQ6-160-050 800 500 203 165 107
    ZETA-PQ6-080-060 800 600 235 192 124
    ZETA-PQ6-120-060 1200 500 480 392 255
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
