Zehdner Zeta, traffic white, Bathroom, ART1E-120-050
wall mounting, cut-out, bracket, Recess
ProductSceletons

Zehnder
Zeta

Electric operation

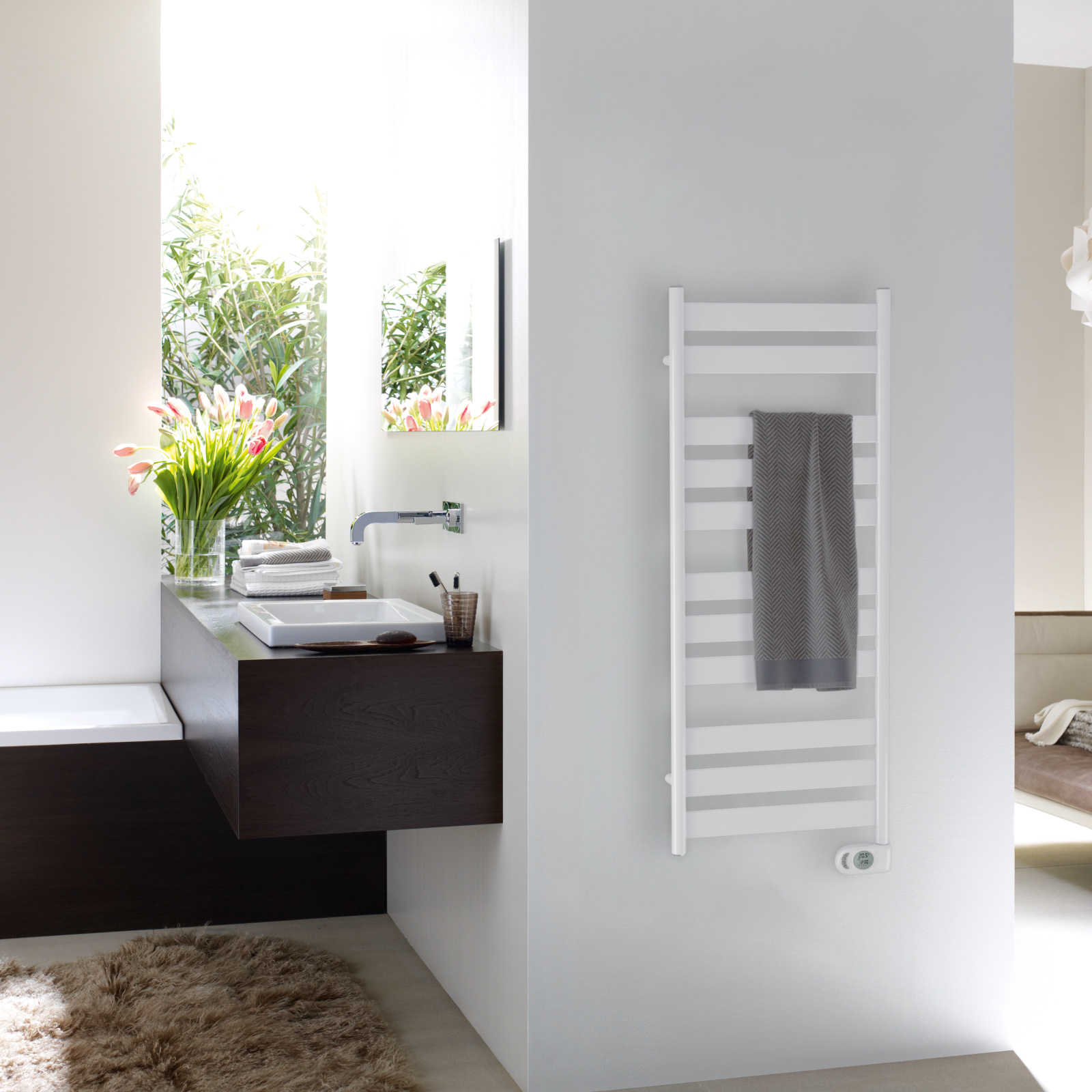

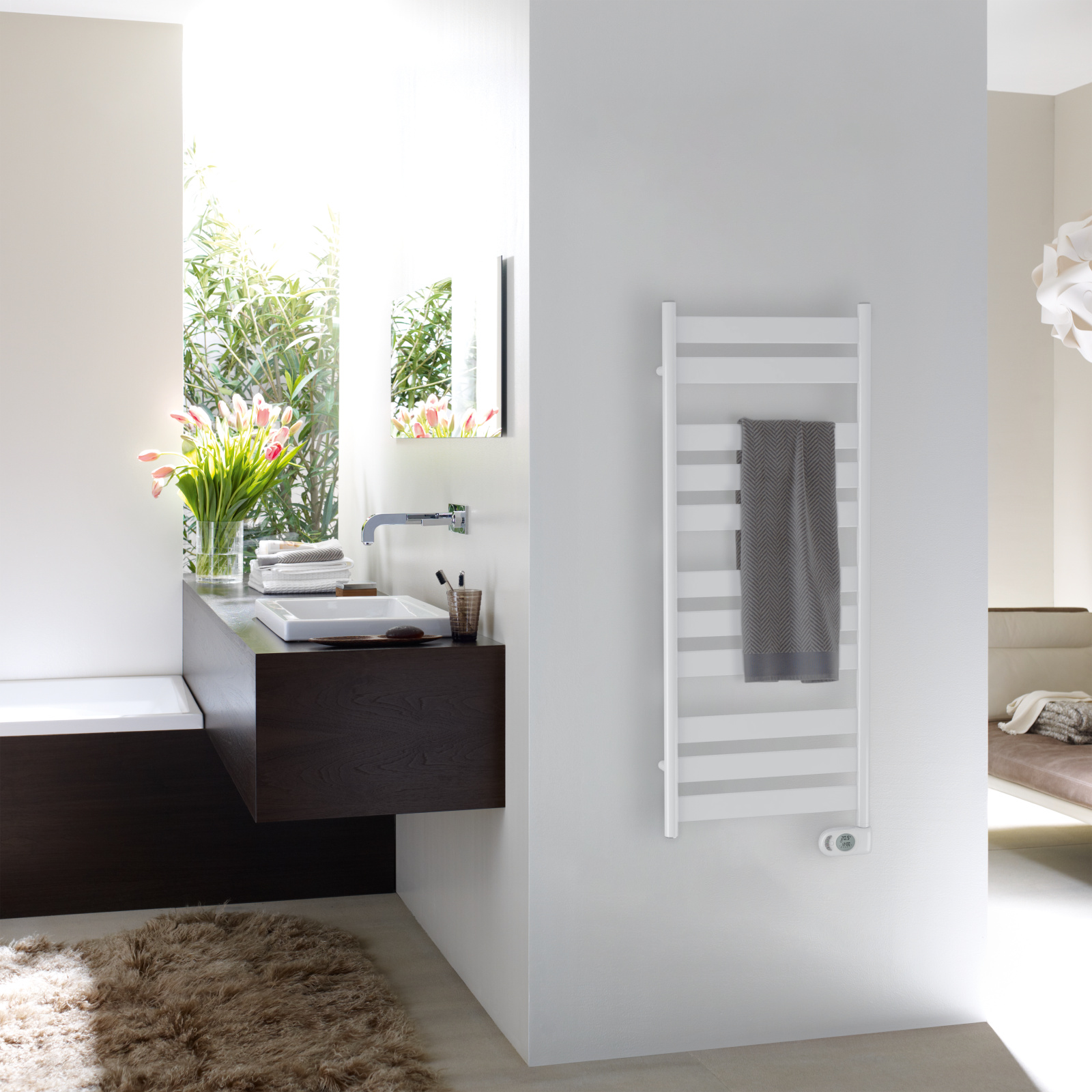

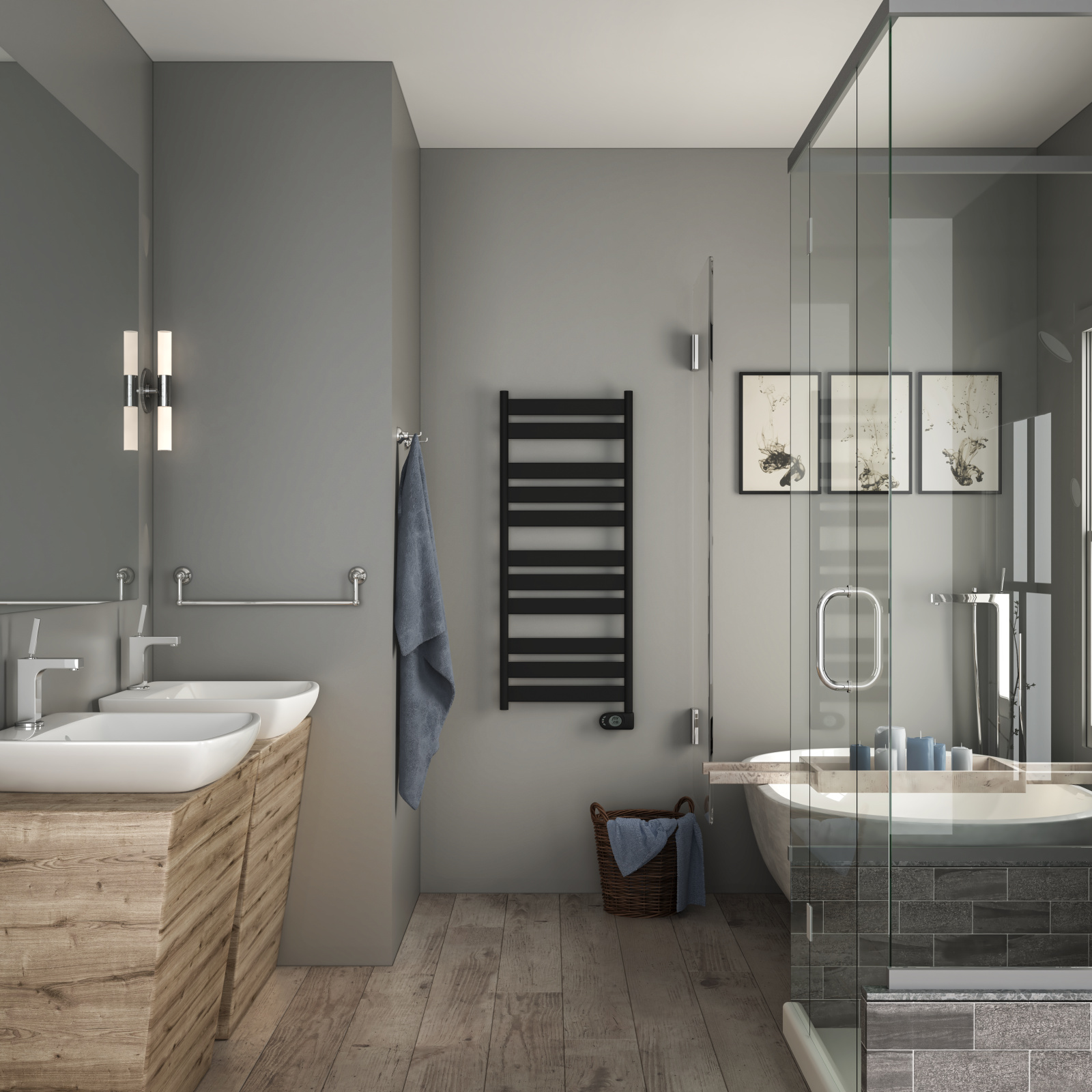

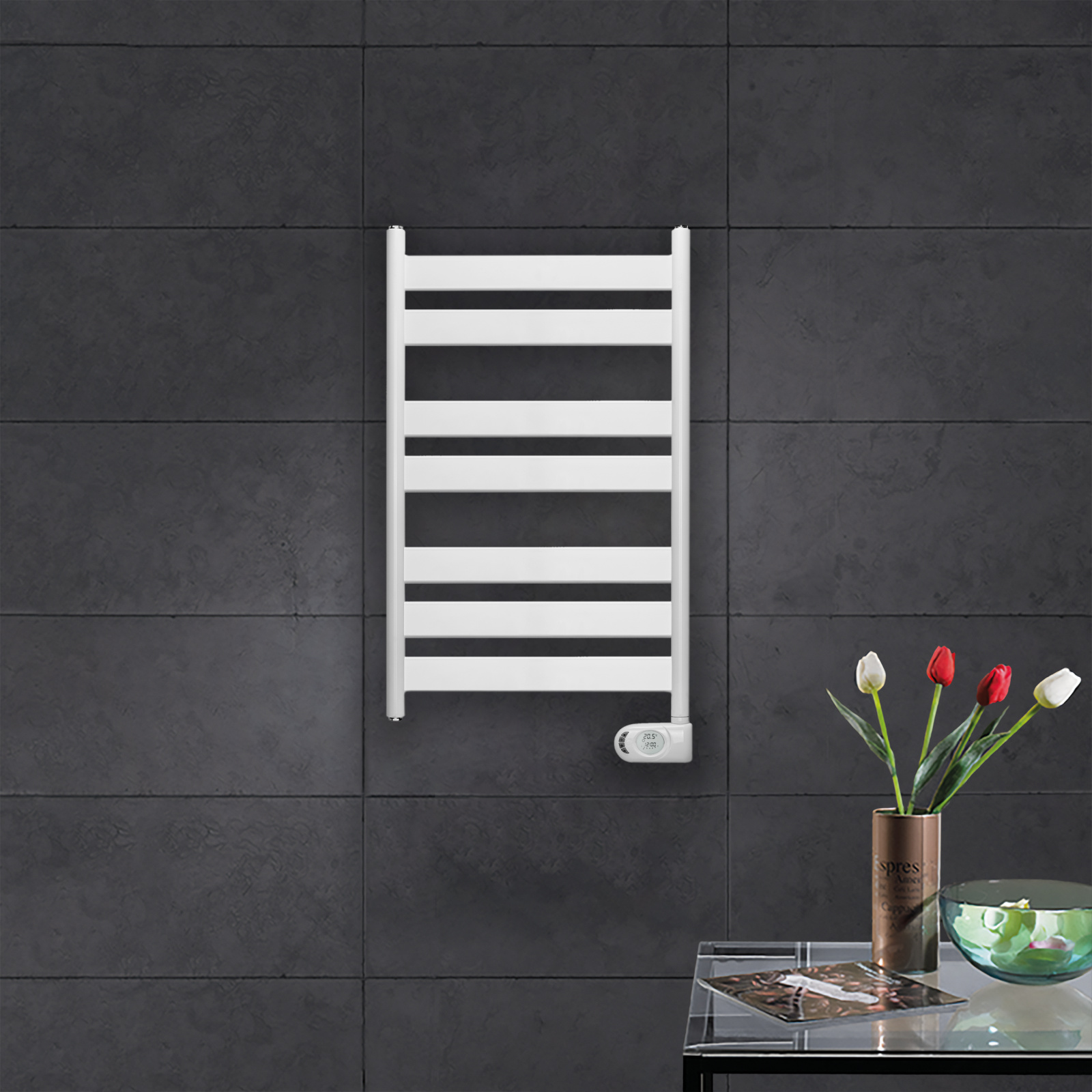

    Subtle elegance and clear lines. With the flat design of its horizontal tube elements, Zehnder Zeta combines form and function in the bathroom. The generous clearance between the sets of tubes makes hanging and warming towels easy. The radiator is available in white and with a high-quality chrome finish.

    ProductSceletons

    Zehnder Zeta - Electric operation

    We also offer the following technologies

    Hydronic operation

    Benefits

    • Timeless design creates an aesthetic accent
    • Generous spaces between the tubes convenient for hanging towels
    • Ample spaces between tubes make cleaning easy
    • Ideal for niches and small rooms thanks to its small wall clearance
    • Elegant design in high-quality chrome
    • Timeless design with square headers is ideal for classic bathrooms
    • Replaceable flow and return makes installation flexible
    • Connection options guarantee short installation times for renovations

    Electric operation

    • Flexible installation through right and left connection options

    Technical data

    Electric-only operation

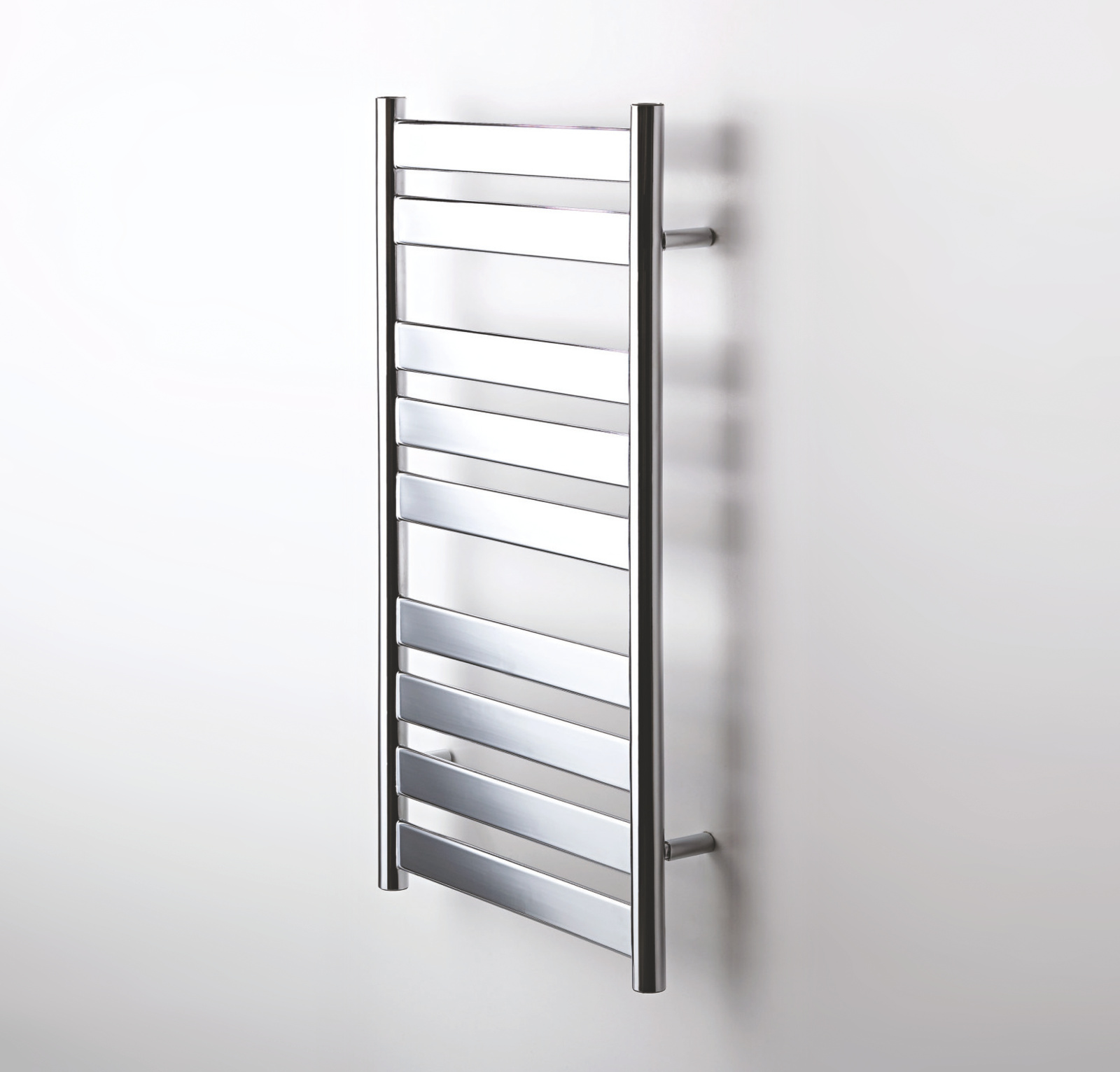

    Chrome-plated version
    Model H HT L Power electric heating element
    mm mm mm Watts
    ZETCE-080-050/MQ 800 874 500 150
    ZETCE-095-050/MQ 950 1024 500 200
    ZETCE-120-050/MQ 1200 1274 500 300
    ZETCE-120-060/MQ 1200 1274 600 300
    ZETCE-160-060/MQ 1600 1674 600 400
    H = height, HT = total height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H HT L Power electric heating element
    mm mm mm Watts
    ZETE-080-050/MQ 800 874 500 300
    ZETE-095-050/MQ 950 1024 500 400
    ZETE-120-050/MQ 1200 1274 500 500
    ZETE-120-060/MQ 1200 1274 600 600
    ZETE-160-060/MQ 1600 1674 600 750
    H = height, HT = total height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Painted version
    Model H HT L Power electric heating element
    mm mm mm Watts
    ZETBE-080-050/MQ 800 874 500 300
    ZETBE-095-050/MQ 950 1024 500 400
    ZETBE-120-050/MQ 1200 1274 500 500
    ZETBE-160-060/MQ 1600 1674 600 750
    H = height, HT = total height, L = length
    75/65/20 = Nominal heat output according to EN 442
