1500, living space, bathroom, wall mounting
Premium Collection

Zehnder
Subway

Hydronic operation

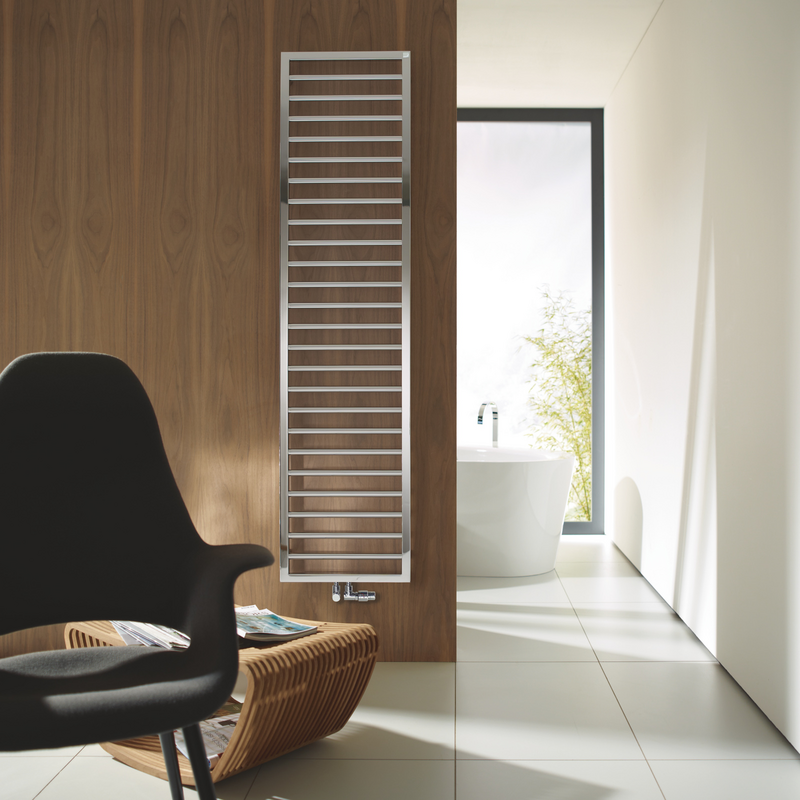

    Purism for walls: The pure design of Zehnder Subway is simple pleasure. The radiator impresses with a clear design aesthetic that refuses to compromise. Its distinctive square frame and delicate round tubes combine to create a designer piece that also doubles as a multiple towel rail. Available in almost any colour and finish from the Zehnder colour chart.

    Premium Collection

    Zehnder Subway - Hydronic operation

    We also offer the following technologies

    Electric operationDual energy operation

    Benefits

    • Distinctive design ideally blends with modern bathrooms
    • Generous spaces between the tubes convenient for hanging towels
    • Brushed stainless steel version ensures resistance to corrosion
    • Special solutions support a wide range of application, such as room divider

    Hydronic operation

    • Flexible installation through right and left connections and 50mm centre connections

    Colour System

    Zehnder Subway - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Painted version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    SUB-100-045 973 450 401 327 210 300
    SUB-130-045 1261 450 509 415 267 300
    SUB-150-045 1549 450 615 502 322 600
    SUB-180-045 1837 450 715 585 377 600
    SUB-100-060 973 600 499 407 262 300
    SUB-130-060 1261 600 639 522 335 600
    SUB-150-060 1549 600 772 630 405 600
    SUB-180-060 1837 600 898 734 473 900
    Version for the guest WC
    SUB-060-045 613 450 310 253 162
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Chrome-plated version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    SUBC-100-045 973 450 265 216 137 300
    SUBC-130-045 1261 450 336 273 174 300
    SUBC-150-045 1549 450 413 336 214 300
    SUBC-180-045 1837 450 486 395 252 300
    SUBC-100-060 973 600 329 268 172 300
    SUBC-130-060 1261 600 408 333 213 300
    SUBC-150-060 1549 600 502 409 262 300
    SUBC-180-060 1837 600 590 481 308 600
    Version for the guest WC
    SUBC-060-045 613 450 205 167 106
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
    Stainless steel version
    Model H L Heat output Power electric heating element
    75/65/20 °C 70/55/20 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts
    SUBI-100-045 973 450 287 234 149 300
    SUBI-130-045 1261 450 370 301 192 300
    SUBI-150-045 1549 450 445 362 231 300
    SUBI-180-045 1837 450 523 425 270 300
    SUBI-100-060 973 600 356 290 186 300
    SUBI-130-060 1261 600 447 364 233 300
    SUBI-150-060 1549 600 538 439 282 300
    SUBI-180-060 1837 600 633 518 335 600
    Version for the guest WC
    SUBI-060-045 613 450 221 180 115
    H = height, L = length
    75/65/20 = Nominal heat output according to EN 442
