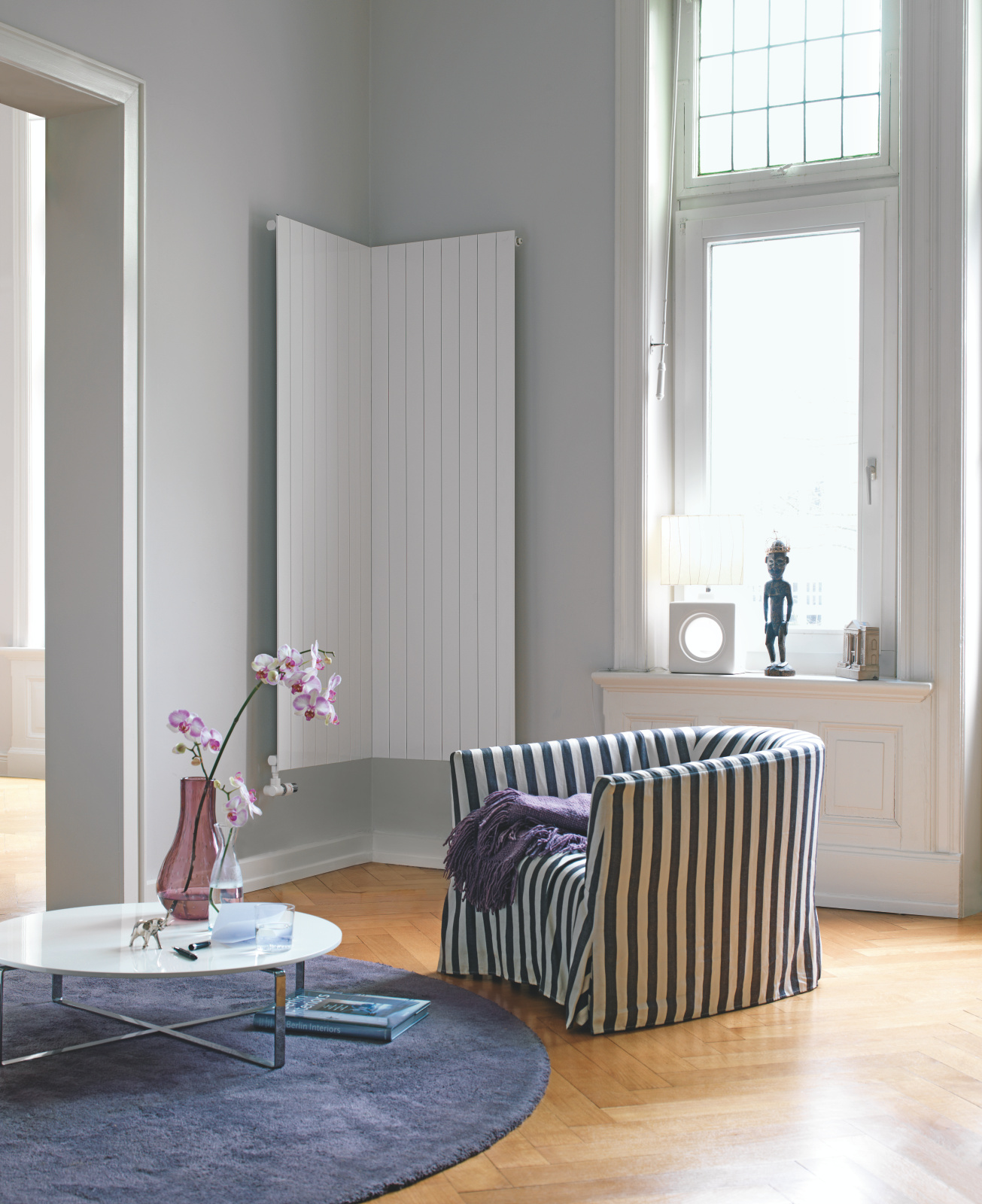

243, comfort valve series XE white, thermostatic head SH, old building, living room, angled, vertical

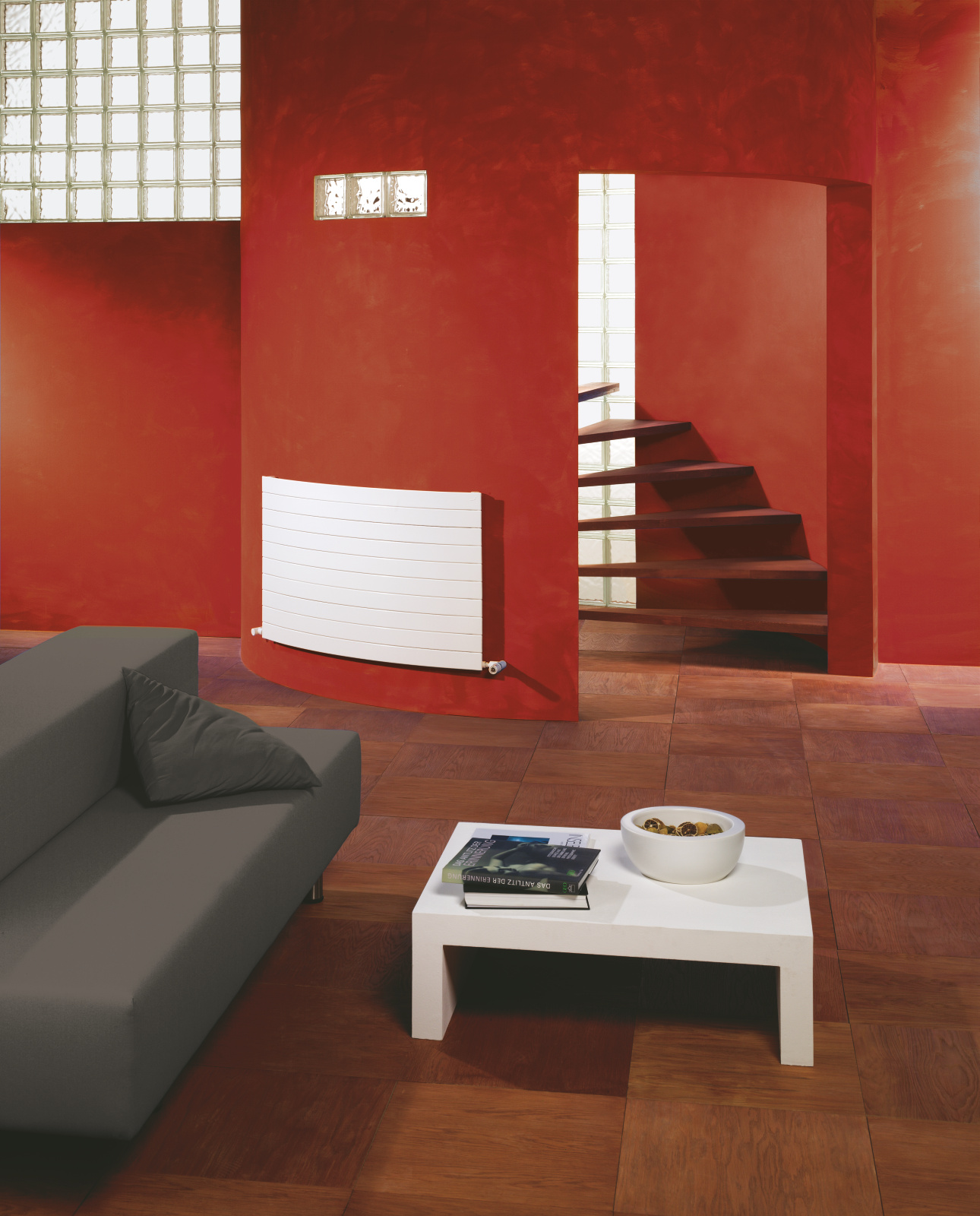

420, living room, valve unit XE white, thermostat DH, Nagona, curved, horizontal, curved, horizontal, curved, horizontal
commercial setting, office
Decorative radiators for living rooms

Zehnder
Nova

Hydronic operation

    Whether your requirement is for traditional, contemporary or cutting-edge, Zehnder Nova, with its range of made to measure models, will satisfy your requirement. Its slim depth and modern look make Zehnder Nova a versatile choice. The radiator always offers the right solution and is available in numerous colours and finishes from the Zehnder colour chart.

    Benefits

    • Multi-purpose thanks to the wide range of different connections, fittings and models
    • Timeless design creates an aesthetic accent
    • Short response time means rooms can be heated up rapidly
    • Special solutions support a wide range of application, such as curved models
    • The right model for almost any connection
    • Elegantly enabled valve integration on request, which discreetly conceals connection fittings
    • Compatible with a heat pump and/or low-temperature systems

    Colour System

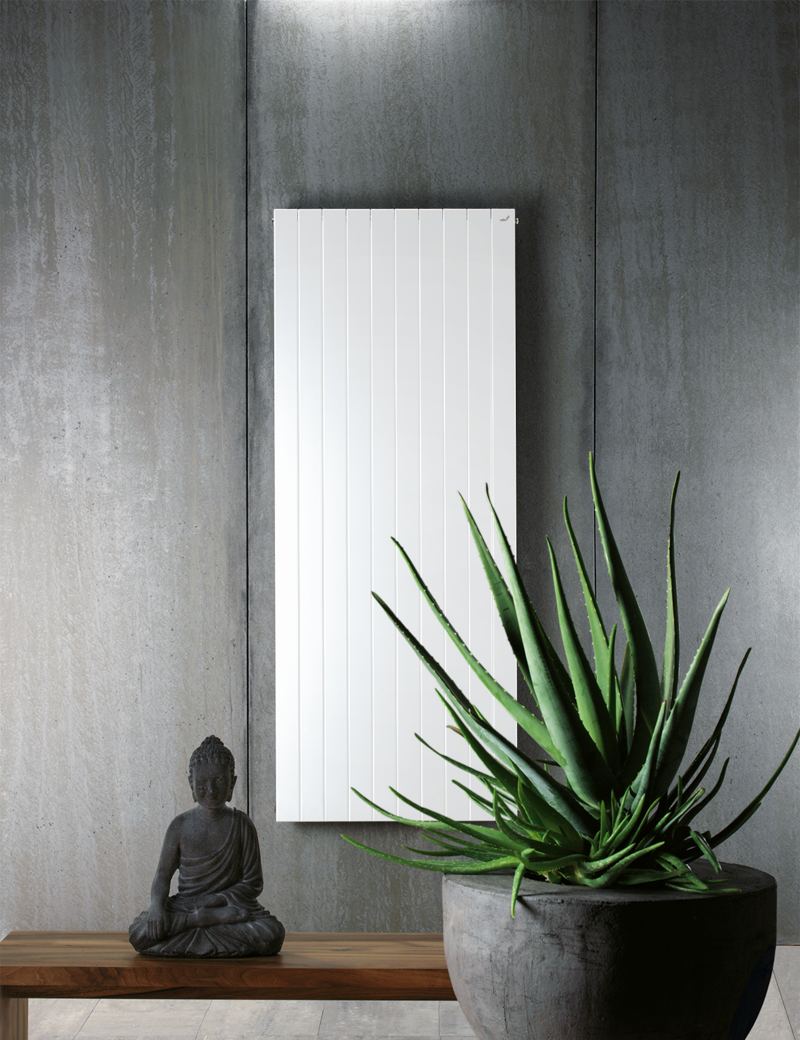

    Zehnder Nova - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Model NV vertical
    Technical specification per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts Watts
    NV60 600 70 45 47 34 38.3 21 24.8
    NV80 800 70 45 60 43 48.9 26 31.6
    NV100 1000 70 45 73 53 59.4 32 38.3
    NV120 1200 70 45 86 62 69.9 37 44.9
    NV140 1400 70 45 99 71 80.4 43 51.4
    NV160 1600 70 45 112 80 90.9 49 58.2
    NV180 1800 70 45 125 90 102 54 65.3
    NV200 2000 70 45 138 99 112 60 72.1
    NV220 2200 70 45 152 109 123 66 79
    NV240 2400 70 45 165 118 134 71 85.8
    NV260 2600 70 45 179 128 145 77 92.6
    NV280 2800 70 45 194 138 157 83 99.8
    NV300 3000 70 45 205 146 166 87 105
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Model NVL vertical
    Technical specification per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts Watts
    NVL60 600 70 58 70 50 56.7 30 36.2
    NVL80 800 70 58 88 63 71.2 38 45.3
    NVL100 1000 70 58 105 75 85.1 45 54.3
    NVL120 1200 70 58 121 86 98 52 62.4
    NVL140 1400 70 58 137 98 111 59 70.5
    NVL160 1600 70 58 153 109 124 65 78.5
    NVL180 1800 70 58 169 120 137 72 86.5
    NVL200 2000 70 58 185 131 149 78 94.5
    NVL220 2200 70 58 201 142 162 85 102
    NVL240 2400 70 58 217 153 175 91 110
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Model NVLV vertical
    Technical specification per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts Watts
    NVLV60 600 70 110 96.1 68 77.6 41 49.2
    NVLV80 800 70 110 120 85 96.8 51 61.1
    NVLV100 1000 70 110 144 102 116 60 73
    NVLV120 1200 70 110 169 119 136 70 85.2
    NVLV140 1400 70 110 195 137 157 81 97.8
    NVLV160 1600 70 110 222 156 178 92 111
    NVLV180 1800 70 110 251 176 202 104 126
    NVLV200 2000 70 110 273 192 219 113 137
    NVLV220 2200 70 110 295 207 237 122 148
    NVLV240 2400 70 110 316 222 254 131 159
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Model NVV vertical
    Technical specification per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts Watts
    NVV60 600 70 53 70 50 56.6 30 36
    NVV80 800 70 53 90 64 72.6 38 45.8
    NVV100 1000 70 53 109 77 87.8 46 55.2
    NVV120 1200 70 53 128 90 103 53 64.2
    NVV140 1400 70 53 146 102 117 60 72.5
    NVV160 1600 70 53 164 115 132 68 82.2
    NVV180 1800 70 53 181 128 146 75 91.2
    NVV200 2000 70 53 198 140 160 83 100.3
    NVV220 2200 70 53 215 152 173 91 110
    NVV240 2400 70 53 231 164 186 97 118
    NVV260 2600 70 53 247 175 199 104 126
    NVV280 2800 70 53 263 186 212 111 134
    NVV300 3000 70 53 280 198 226 118 143
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Model NVV-4SR vertical
    Technical specification per element
    Model H L T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm mm Watts Watts Watts Watts Watts
    NVV60-4SR 600 70 92 79 56 64.1 34 41
    NVV80-4SR 800 70 92 100 71 81.1 43 51.7
    NVV100-4SR 1000 70 92 121 86 98 52 62.4
    NVV120-4SR 1200 70 92 141 100.3 114 60 72.5
    NVV140-4SR 1400 70 92 163 116 132 69 83.6
    NVV160-4SR 1600 70 92 184 131 149 78 94.2
    NVV180-4SR 1800 70 92 205 145 166 87 105
    NVV200-4SR 2000 70 92 227 161 183 96 116
    NVV220-4SR 2200 70 92 249 176 201 105 126
    NVV240-4SR 2400 70 92 272 192 219 114 138
    NVV260-4SR 2600 70 92 295 208 237 123 149
    NVV280-4SR 2800 70 92 319 225 256 133 161
    NVV300-4SR 3000 70 92 343 241 276 142 172
    H = height, L = length, T = depth
    75/65/20 = Nominal heat output according to EN 442
