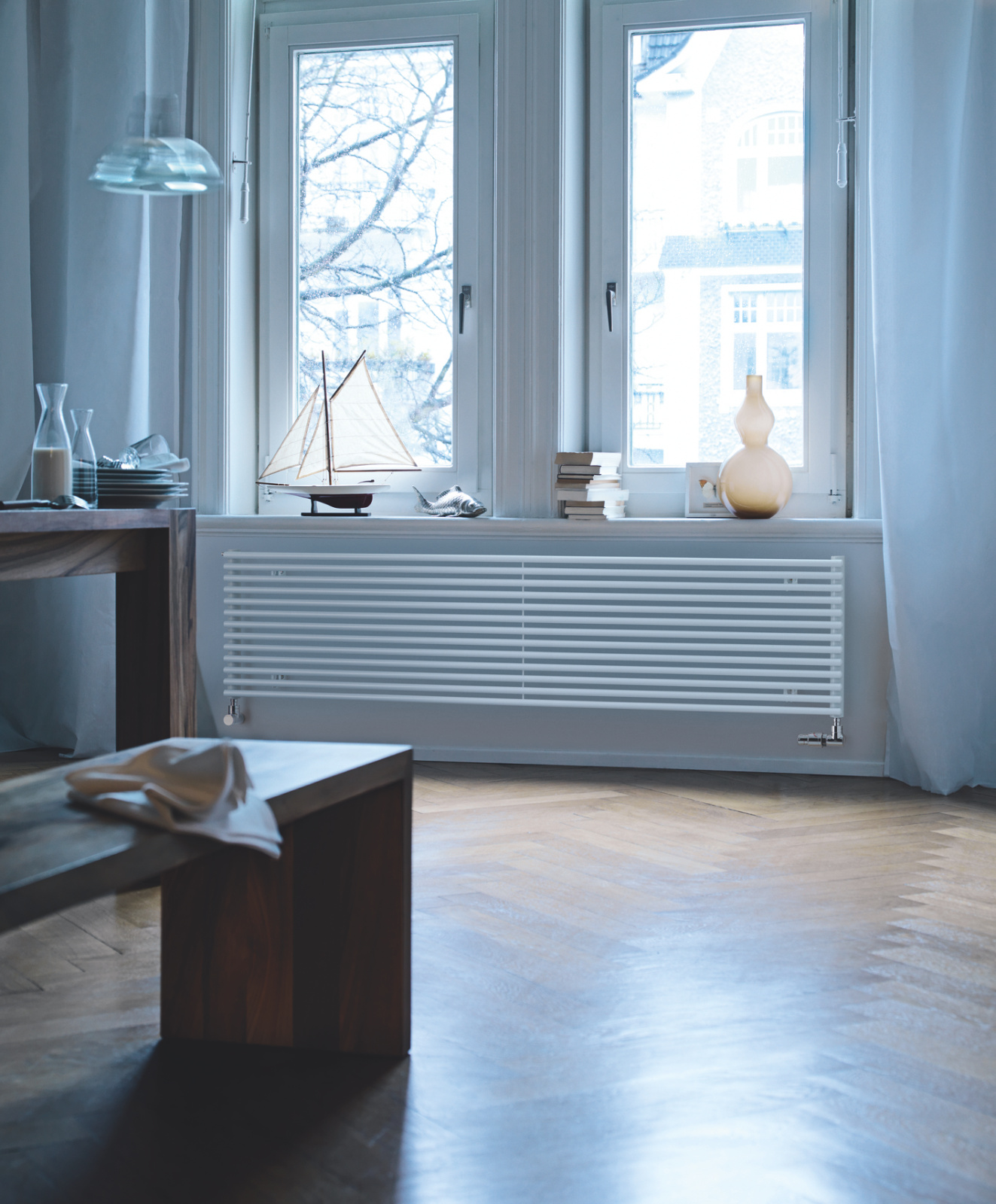

living room, Zehnder Vario fitting with cover, thermostat  LH2 chrome, towel rail, towel bar, connection block, wall mounting, KLVP, 453, Towel holder

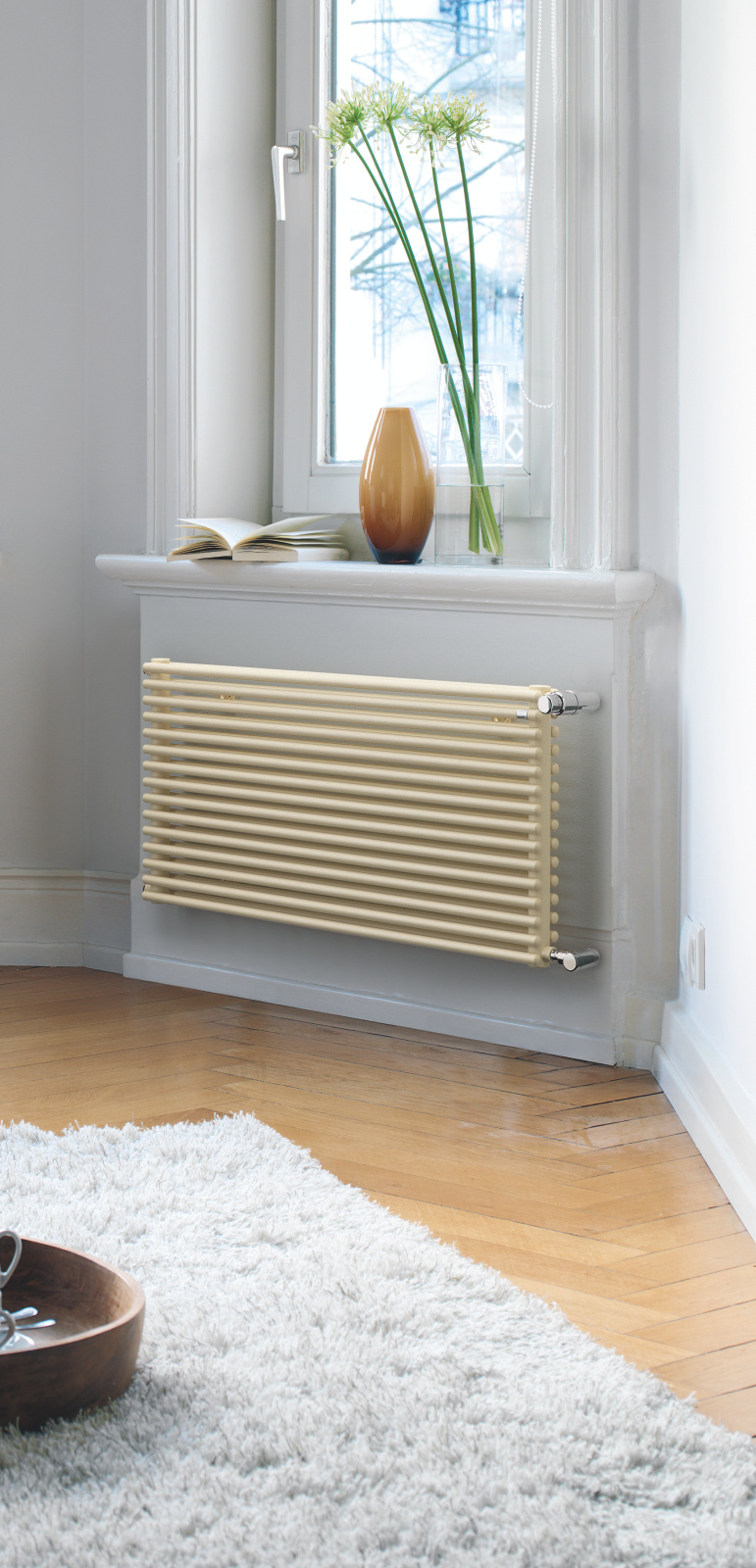

423, valve unit XE angle version chrome, thermostat SH chrome, wall mounting, living room, horizontal

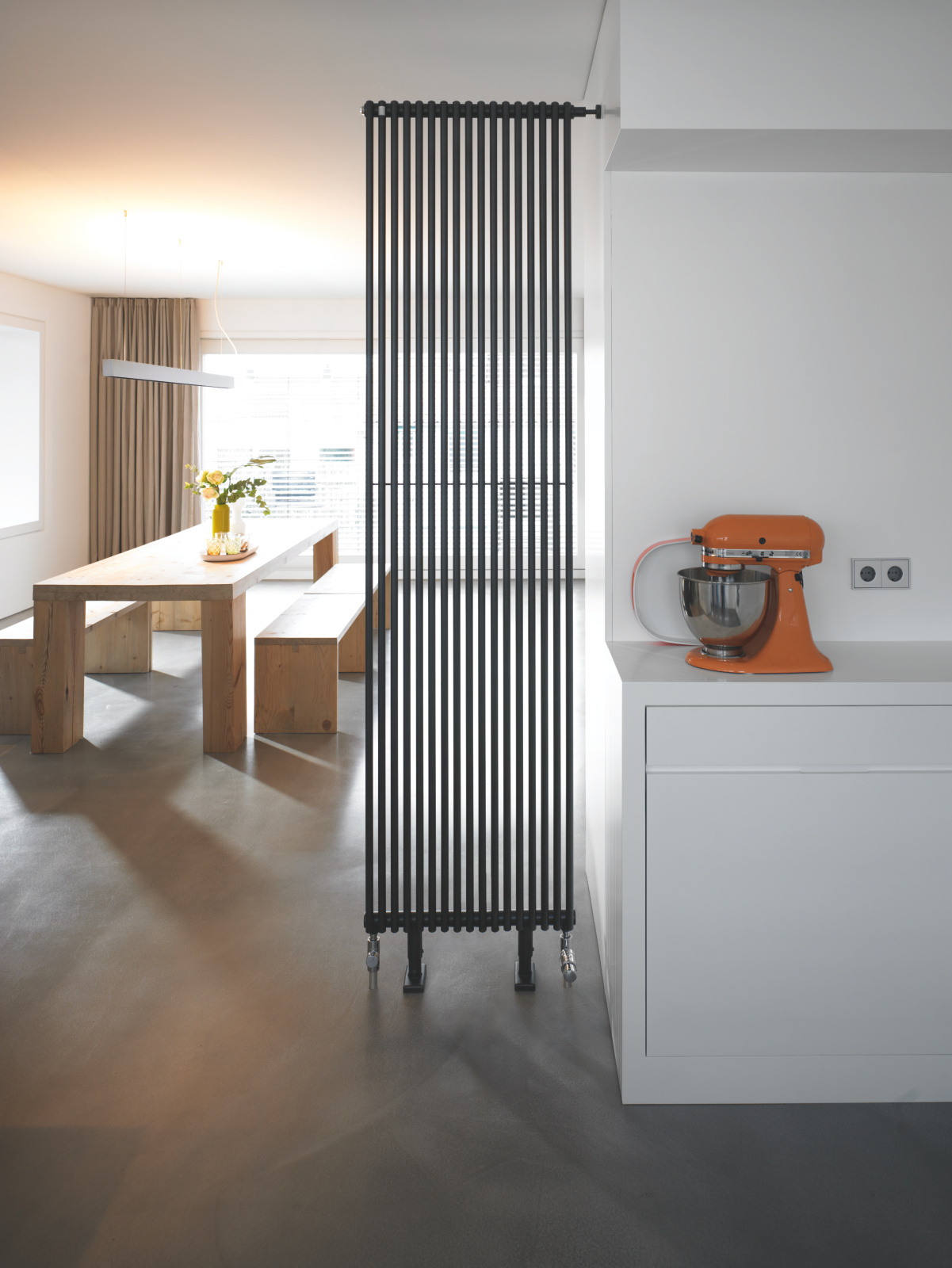

423, KLV, comfort valve series XE chrome,thermostat SH chrome,welded feet, welded feet, kitchen, dining room, floor support, floor fixing, floor fixing, Room divider, single layer, vertical, single layer, vertical, single layer, vertical
Decorative radiators for living rooms

Zehnder
Kleo

Hydronic operation

    Zehnder Kleo is sophisticated and functional. Its elegant, open and transparent construction is supported by high performance and a lot more: Retrofit models are available for existing pipework. Special solutions are also readily available. Zehnder Kleo is also available as a room divider. Available in almost any colour and finish from the Zehnder colour chart.

    Benefits

    • Retrofit models available for existing pipework, providing simple installation for renovation projects
    • Light, seamless design through its element construction
    • Special solutions support a wide range of application, such as room divider
    • High proportion of radiation ensures comfort
    • Complies with statutory safety regulations
    • Compatible with a heat pump and/or low-temperature systems

    Colour System

    Zehnder Kleo - Hydronic operation
    Traffic White (9016* / RAL 9016)
    * These colours / surfaces are glossy, all others matt.
    Despite extreme care in the painting process of our radiators, slight colour deviations are possible, depending on the production series and compared to other colour carriers (ceramic, paper, metal, ...) as well as screen display.
    RAL and NCS are manufacturer's designations.

    Technical data

    Connection to hot water central heating system

    Models KLH
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    KLH-022 233 55 279 204 230 127 151
    KLH-025 266 55 325 238 267 148 176
    KLH-028 299 55 371 271 305 169 201
    KLH-032 332 55 418 306 344 191 226
    KLH-035 365 55 466 341 383 213 252
    KLH-038 398 55 515 376 424 235 279
    KLH-042 431 55 564 412 464 257 306
    KLH-045 464 55 611 441 499 270 323
    KLH-048 497 55 654 472 534 289 345
    KLH-052 530 55 697 503 569 308 368
    KLH-055 563 55 739 533 603 326 390
    KLH-058 596 55 782 564 638 345 413
    KLH-061 629 55 824 594 673 364 435
    KLH-065 662 55 867 625 708 383 458
    KLH-068 695 55 909 656 742 401 480
    KLH-071 728 55 951 686 776 420 502
    KLH-075 761 55 993 716 810 439 524
    KLH-078 794 55 1034 746 844 457 546
    KLH-081 827 55 1076 776 878 475 568
    KLH-085 860 55 1117 806 912 493 590
    KLH-088 893 55 1159 836 946 512 612
    KLH-091 926 55 1200 877 987 548 650
    KLH-094 959 55 1241 895 1013 548 655
    KLH-098 992 55 1282 927 1048 570 680
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLH
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    KLH-101 1025 55 1323 957 1082 588 702
    KLH-108 1091 55 1405 1016 1149 625 746
    KLH-114 1157 55 1485 1074 1214 660 788
    KLH-121 1223 55 1566 1133 1280 696 831
    KLH-127 1289 55 1646 1190 1346 732 874
    KLH-134 1355 55 1725 1248 1410 767 916
    KLH-141 1421 55 1804 1305 1475 802 958
    KLH-147 1487 55 1882 1361 1539 837 999
    KLH-154 1553 55 1960 1417 1602 871 1040
    KLH-160 1619 55 2038 1474 1666 906 1082
    KLH-167 1685 55 2115 1530 1729 940 1123
    KLH-174 1751 55 2191 1585 1791 974 1163
    KLH-180 1817 55 2267 1635 1850 1001 1197
    KLH-187 1883 55 2342 1698 1918 1048 1249
    KLH-193 1949 55 2417 1753 1979 1081 1289
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLH
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    KLH-200 2015 55 2492 1807 2041 1115 1330
    KLH-207 2081 55 2566 1861 2101 1148 1369
    KLH-213 2147 55 2639 1914 2161 1181 1408
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLHD
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Double-layer version
    KLHD-022 233 72 540 389 440 237 284
    KLHD-028 299 72 670 482 546 294 352
    KLHD-035 365 72 795 572 648 349 418
    KLHD-042 431 72 917 660 747 402 482
    KLHD-048 497 72 1036 745 844 455 544
    KLHD-055 563 72 1153 830 940 506 606
    KLHD-061 629 72 1268 912 1033 556 666
    KLHD-068 695 72 1382 994 1126 606 726
    KLHD-075 761 72 1494 1075 1217 655 785
    KLHD-081 827 72 1604 1154 1307 704 843
    KLHD-088 893 72 1713 1232 1396 752 900
    KLHD-094 959 72 1821 1310 1484 799 957
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLHD
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Double-layer version
    KLHD-101 1025 72 1928 1387 1571 846 1013
    KLHD-108 1091 72 2034 1463 1657 892 1069
    KLHD-114 1157 72 2140 1540 1744 939 1124
    KLHD-121 1223 72 2244 1614 1829 984 1179
    KLHD-127 1289 72 2347 1689 1912 1030 1233
    KLHD-134 1355 72 2450 1763 1996 1075 1287
    KLHD-141 1421 72 2552 1836 2080 1120 1341
    KLHD-147 1487 72 2653 1909 2162 1164 1394
    KLHD-154 1553 72 2754 1981 2244 1208 1447
    KLHD-160 1619 72 2854 2053 2326 1252 1499
    KLHD-167 1685 72 2954 2125 2407 1296 1552
    KLHD-174 1751 72 3053 2196 2488 1339 1604
    KLHD-180 1817 72 3152 2268 2568 1383 1656
    KLHD-187 1883 72 3250 2338 2648 1426 1708
    KLHD-193 1949 72 3347 2408 2727 1468 1758
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLHD
    Technical data per metre
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Double-layer version
    KLHD-200 2015 72 3444 2478 2806 1511 1809
    KLHD-207 2081 72 3541 2547 2885 1553 1860
    KLHD-213 2147 72 3637 2617 2964 1596 1911
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLV
    Technical data per element
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Single-layer version
    KLV-050 500 55 22.3 16 18.1 10 11.7
    KLV-060 600 55 26.1 19 21.2 11 13.7
    KLV-070 700 55 29.9 22 24.3 13 15.7
    KLV-080 800 55 33.7 24 27.4 15 17.6
    KLV-090 900 55 37.4 27 30.4 16 19.5
    KLV-100 1000 55 41.1 29 33.4 18 21.4
    KLV-110 1100 55 44.8 32 36.4 20 23.4
    KLV-120 1200 55 48.5 35 39.4 21 25.3
    KLV-150 1500 55 59.4 43 48.3 26 31
    KLV-180 1800 55 70.2 50 57 30 36.5
    KLV-200 2000 55 77.5 55 62.9 34 40.3
    KLV-220 2200 55 84.7 61 68.7 37 44
    KLV-250 2500 55 95.6 68 77.6 41 49.7
    KLV-260 3000 55 114 92.4 58.9
    KLV-280 2800 55 107 76 86.7 46 55.3
    KLV-300 3000 55 114 81 92.4 49 58.9
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
    Models KLVD
    Technical data per element
    Model H T Heat output
    75/65/20 °C 70/55/24 °C 70/55/20 °C 55/45/24 °C 55/45/20 °C
    mm mm Watts Watts Watts Watts Watts
    Double-layer version
    KLVD-050 500 72 34.3 25 27.8 15 17.8
    KLVD-060 600 72 40.4 29 32.8 17 21
    KLVD-070 700 72 46.4 33 37.6 20 24.1
    KLVD-080 800 72 52.3 37 42.4 23 27.2
    KLVD-090 900 72 58.1 42 47.1 25 30.2
    KLVD-100 1000 72 63.8 46 51.9 28 33.3
    KLVD-110 1100 72 69.4 50 56.4 30 36.2
    KLVD-120 1200 72 74.9 54 60.9 33 39.1
    KLVD-150 1500 72 91 65 74 40 47.5
    KLVD-160 2000 72 116 94.3 60.6
    KLVD-180 1800 72 106 76 86.2 46 55.4
    KLVD-200 2000 72 116 94.3 94.3 51 60.6
    KLVD-220 2200 72 126 91 103 55 66.2
    KLVD-250 2500 72 140 114 114 61 73.5
    KLVD-280 2800 72 153 124 124 66 79.1
    KLVD-300 3000 72 162 131 131 70 83.8
    H = height, T = depth
    75/65/20 = Nominal heat output according to EN 442
