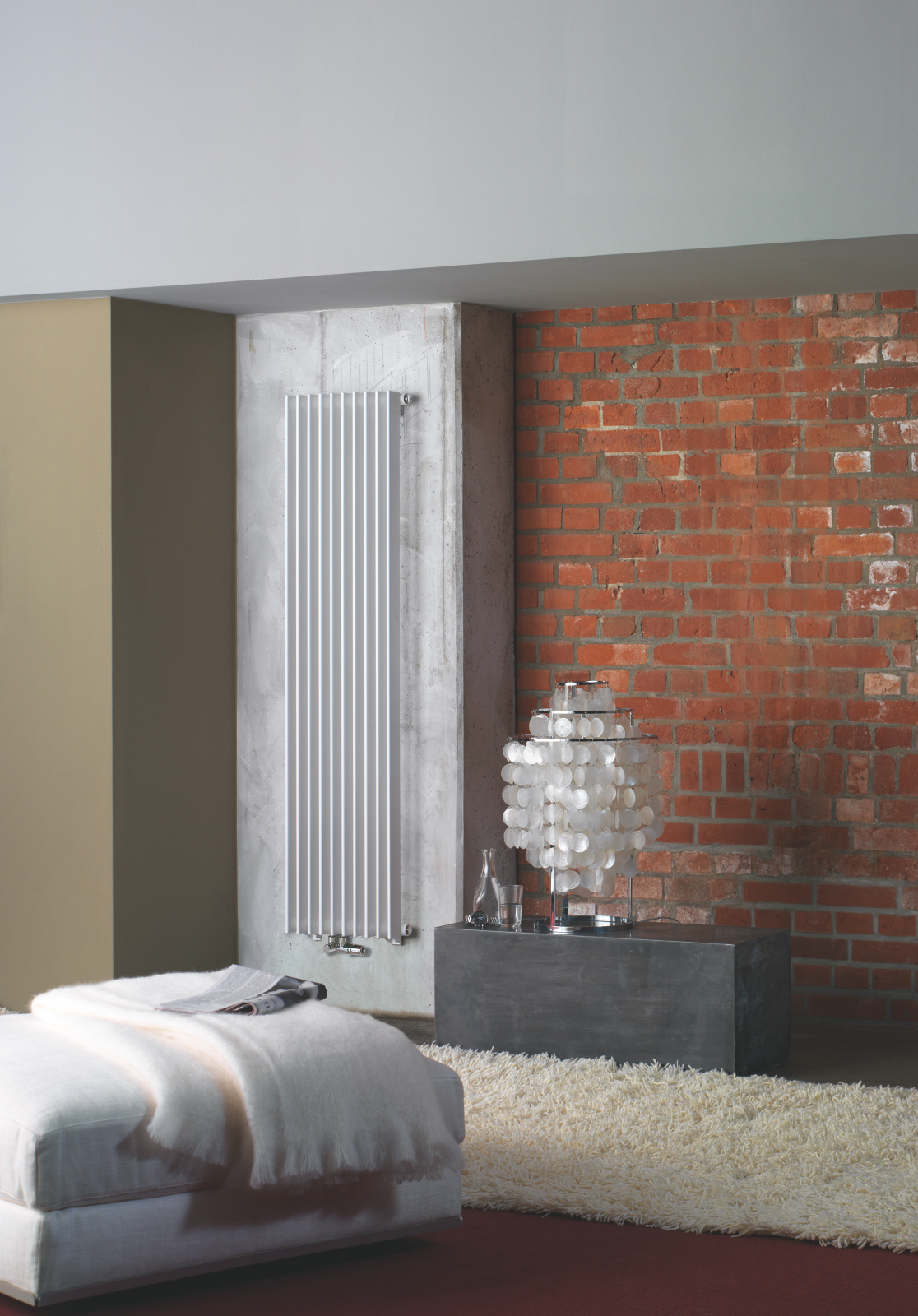

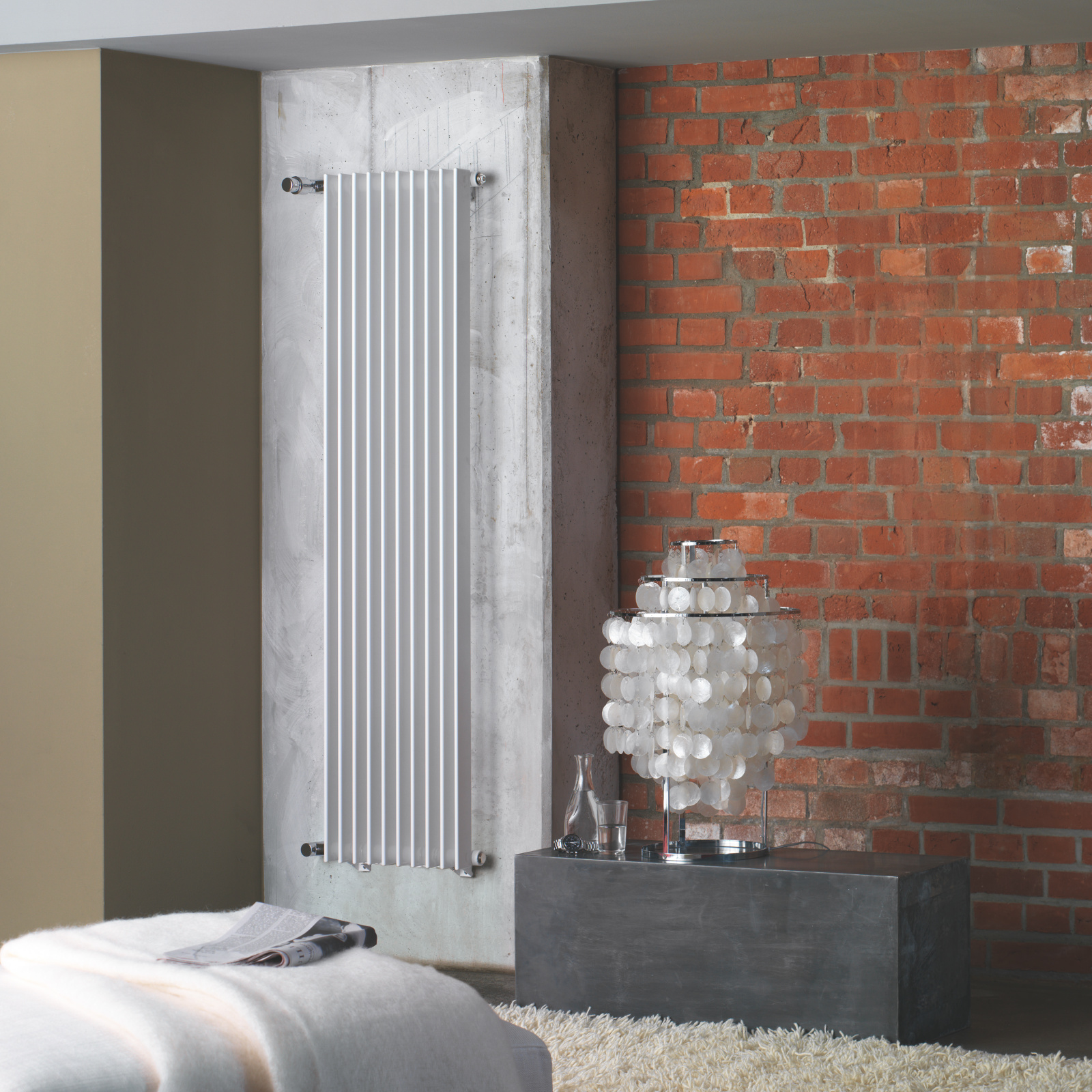

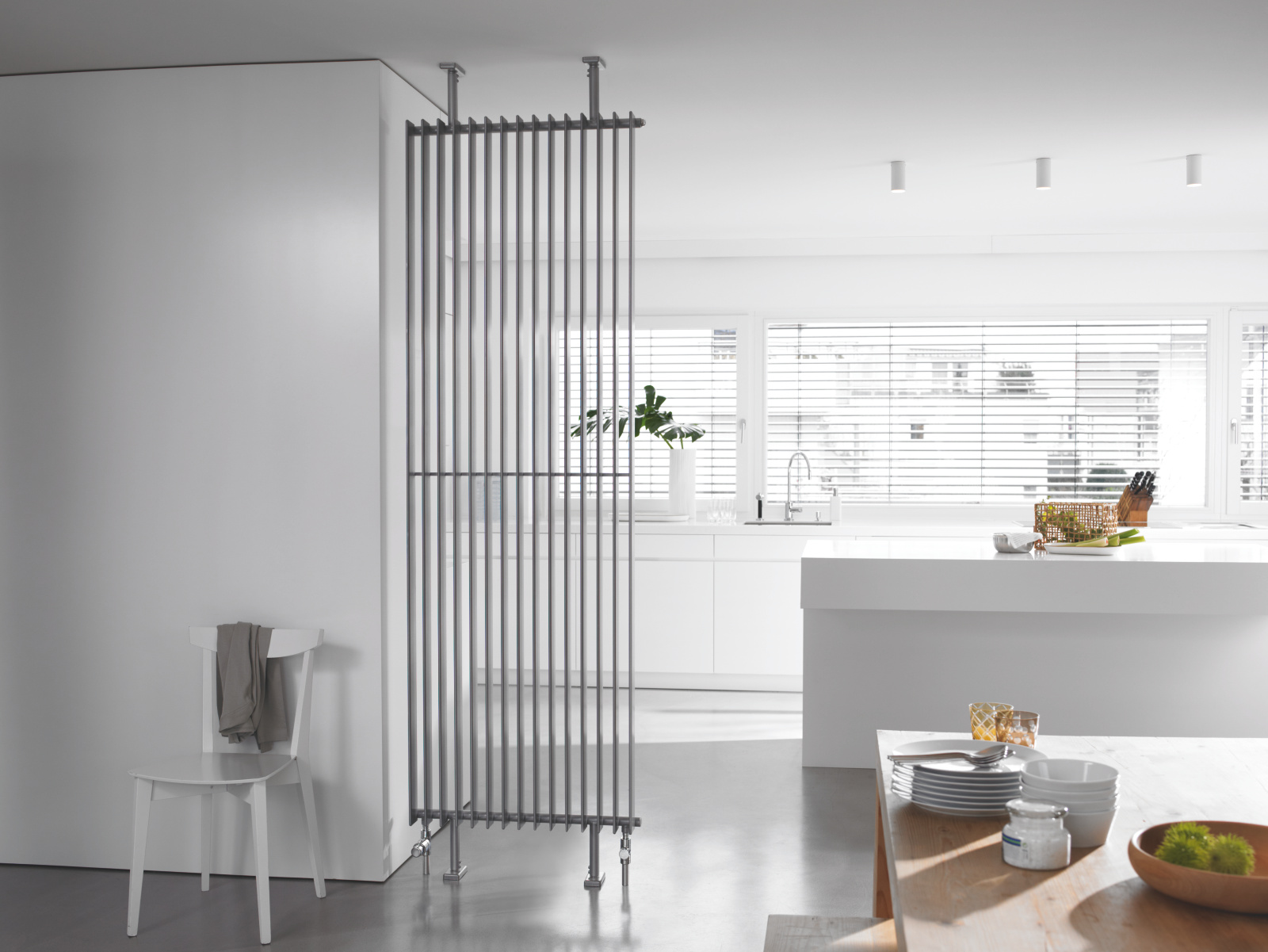

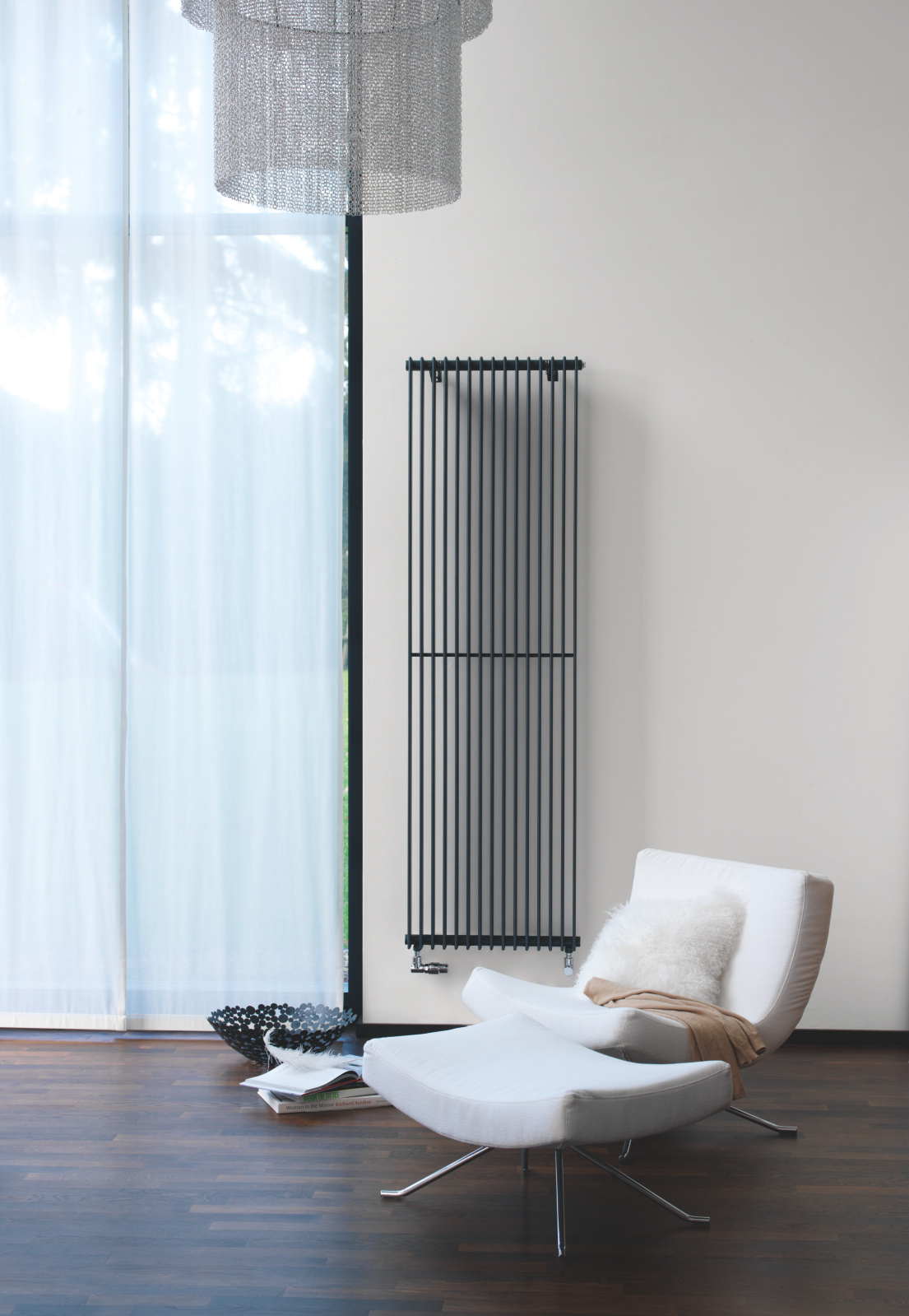

Zehnder Excelsior helps turn individual interior design concepts into reality. The classic and elegant flat tubes appear light and transparent. The radiator can be installed on the wall or used as a room divider. Available in many colours and finishes from the Zehnder colour chart, also made to measure as a special solution. Zehnder Excelsior combines home comforts and warmth.

Benefits

  • Light, seamless design through its element construction
  • Low overall height and transparent construction offer an ideal solution for floor to ceiling windows
  • Wide range of models supports versatile use
  • High proportion of radiation ensures comfort
  • Compatible with a heat pump and/or low-temperature systems

        Technical specifications per element

        Model

        H1)
        mm
        L2)
        mm
        T
        mm
        Thermal output
        75/65/20 °C3)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        E1035/30350309524.219.813.0
        E1035/35350359525.220.713.7
        E1035/40350409526.321.614.1
        E1035/45350459527.322.414.7
        E1035/50350509528.323.215.2
        E1035/55350559529.223.915.7
        E1035/60350609530.124.716.2
        E1040/30405309527.022.114.5
        E1040/35405359527.922.915.1
        E1040/40405409529.424.115.8
        E1040/45405459530.424.916.4
        E1040/50405509531.425.716.8
        E1040/55405559532.526.617.4
        E1040/60405609533.527.518.0
        E1045/30450309529.324.015.7
        E1045/35450359530.525.116.5
        E1045/40450409531.826.117.1
        E1045/45450459532.927.017.7
        E1045/50450509534.027.818.2
        E1045/55450559535.228.818.9
        E1045/60450609536.229.719.4
        E1050/30500309531.926.117.1
        E1050/35500359533.027.117.8
        E1050/40500409534.428.218.4
        E1050/45500459535.729.319.2
        E1050/50500509536.830.119.7
        E1050/55500559538.131.220.4
        E1050/60500609539.232.121.0
        E1055/30550309534.428.218.4
        E1055/35550359535.629.219.2
        E1055/40550409537.130.419.8
        E1055/45550459538.431.520.6
        E1055/50550509539.632.421.1
        E1055/55550559541.033.621.9
        E1055/60550609542.234.522.5
        E1060/30600309536.930.219.8
        E1060/35600359538.131.320.5
        E1060/40600409539.732.521.2
        E1060/45600459541.133.722.0
        E1060/50600509542.334.622.5
        E1060/55600559543.935.923.4
        E1060/60600609545.237.024.1
        E1070/30700309541.934.322.4
        E1070/35700359543.235.423.2
        E1070/40700409545.036.824.0
        E1070/45700459546.538.124.8
        E1070/50700509547.939.125.4
        E1070/55700559549.740.626.4
        E1070/60700609551.141.827.1
        E1080/30800309546.838.325.0
        E1080/35800359548.339.625.8
        E1080/40800409550.341.126.7
        E1080/45800459552.042.527.7
        E1080/50800509553.543.728.3
        E1080/55800559555.545.329.4
        E1080/60800609557.146.630.2
        E1090/30900309551.842.427.6
        E1090/35900359553.443.728.5
        E1090/40900409555.645.429.4
        E1090/45900459557.547.030.5
        E1090/50900509559.248.231.2
        E1090/55900559561.450.132.4
        E1090/60900609563.151.533.3
        E1100/301000309556.846.430.1
        E1100/351000359558.647.931.2
        E1100/401000409561.149.832.2
        E1100/451000459563.251.633.4
        E1100/501000509565.153.034.1
        E1100/551000559567.354.935.4
        E1100/601000609569.356.536.4
        E1120/301200309567.054.735.4
        E1120/351200359569.356.636.6
        E1120/401200409572.258.837.8
        E1120/451200459574.760.839.2
        E1120/501200509577.162.640.1
        E1120/551200559579.664.741.6
        E1120/601200609581.966.642.8
        E1150/301500309582.867.443.4
        E1150/351500359586.170.145.1
        E1150/401500409589.872.946.6
        E1150/451500459593.175.648.4
        E1150/501500509596.678.249.7
        E1150/551500559599.280.451.4
        E1150/601500609510282.752.7
        E1180/301800309599.580.851.8
        E1180/351800359510484.454.0
        E1180/401800409510988.256.1
        E1180/451800459511391.558.2
        E1180/501800509511895.260.1
        E1180/551800559512197.862.0
        E1180/601800609512410063.5
        E1200/302000309511190.057.5
        E1200/352000359511794.760.3
        E1200/402000409512298.562.4
        E1200/452000459512710365.0
        E1200/502000509513310767.2
        E1200/552000559513611069.2
        E1200/602000609514011371.2
        E1220/302200309512399.663.4
        E1220/352200359513110667.1
        E1220/402200409513711169.6
        E1220/452200459514211572.2
        E1220/502200509515012075.2
        E1220/552200559515212276.9
        E1220/602200609515612678.8
        E1250/302500309514311673.2
        E1250/352500359515312377.7
        E1250/402500409516012980.5
        E1250/452500459516713484.0
        E1250/502500509517714287.7
        E1250/552500559517814389.1
        E1250/602500609518314791.4

        H = height, L = length, T = depth
        1) Larger heights up to 4000 mm or intermediate heights on request
        2) Total length = (number of sections -1) x length + 40 mm
        3) Nominal heat output according to EN 442

        Technical specifications per element

        Model

        H1)
        mm
        L2)
        mm
        T
        mm
        Thermal output
        75/65/20 °C3)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        E2035/303503016043.034.822.2
        E2035/353503516044.435.922.9
        E2035/403504016046.237.523.9
        E2035/453504516046.938.024.2
        E2035/503505016048.339.124.8
        E2035/553505516049.340.025.6
        E2035/603506016050.440.926.2
        E2040/304053016048.038.924.7
        E2040/354053516049.840.325.6
        E2040/404054016051.741.926.8
        E2040/454054516052.742.727.2
        E2040/504055016054.744.228.1
        E2040/554055516055.444.928.7
        E2040/604056016056.746.029.4
        E2045/304503016052.142.226.8
        E2045/354503516054.243.927.9
        E2045/404504016056.245.629.1
        E2045/454504516057.446.529.6
        E2045/504505016059.848.430.7
        E2045/554505516060.449.031.3
        E2045/604506016061.850.031.8
        E2050/305003016056.545.729.1
        E2050/355003516058.947.730.3
        E2050/405004016061.149.531.6
        E2050/455004516062.650.732.3
        E2050/505005016065.553.033.6
        E2050/555005516065.953.434.1
        E2050/605006016067.454.734.9
        E2055/305503016060.949.331.3
        E2055/355503516063.651.432.7
        E2055/405504016065.953.434.1
        E2055/455504516067.654.734.9
        E2055/505505016071.157.536.5
        E2055/555505516071.357.836.9
        E2055/605506016072.959.137.8
        E2060/306003016065.252.733.5
        E2060/356003516068.355.235.1
        E2060/406004016070.657.236.5
        E2060/456004516072.758.937.5
        E2060/506005016076.762.039.4
        E2060/556005516076.662.139.6
        E2060/606006016078.463.640.6
        E2070/307003016073.759.637.8
        E2070/357003516077.462.639.7
        E2070/407004016080.164.941.3
        E2070/457004516082.666.842.5
        E2070/507005016087.670.845.0
        E2070/557005516087.270.645.0
        E2070/607006016089.372.446.2
        E2080/308003016082.166.442.1
        E2080/358003516086.569.944.4
        E2080/408004016089.472.446.0
        E2080/458004516092.574.847.5
        E2080/508005016098.479.650.5
        E2080/558005516097.879.250.4
        E2080/608006016010081.051.6
        E2090/309003016090.473.046.3
        E2090/359003516095.477.148.9
        E2090/409004016098.779.850.7
        E2090/459004516010282.552.4
        E2090/509005016010988.155.9
        E2090/559005516010887.455.6
        E2090/609006016011189.957.2
        E2100/3010003016098.779.750.5
        E2100/3510003516010484.053.2
        E2100/4010004016010887.355.4
        E2100/4510004516011290.557.4
        E2100/5010005016012097.061.5
        E2100/5510005516011996.361.1
        E2100/6010006016012298.762.8
        E2120/3012003016011592.858.6
        E2120/3512003516012298.562.3
        E2120/4012004016012710365.0
        E2120/4512004516013210767.5
        E2120/5012005016014111472.2
        E2120/5512005516014011371.7
        E2120/6012006016014411773.8
        E2150/3015003016014011371.0
        E2150/3515003516014912075.8
        E2150/4015004016015512578.9
        E2150/4515004516016113081.9
        E2150/5015005016017213988.0
        E2150/5515005516017213987.7
        E2150/6015006016017714390.3
        E2180/3018003016016613483.8
        E2180/3518003516017614289.2
        E2180/4018004016018414893.2
        E2180/4518004516019215597.3
        E2180/50180050160202163103
        E2180/55180055160205165104
        E2180/60180060160211170107
        E2200/3020003016018314792.1
        E2200/3520003516019415698.0
        E2200/40200040160204164103
        E2200/45200045160212171107
        E2200/50200050160223180114
        E2200/55200055160228184115
        E2200/60200060160235189119
        E2220/30220030160201161101
        E2220/35220035160213171107
        E2220/40220040160224180113
        E2220/45220045160233187117
        E2220/50220050160243196124
        E2220/55220055160251202127
        E2220/60220060160259208131
        E2250/30250030160228183114
        E2250/35250035160241194121
        E2250/40250040160255205128
        E2250/45250045160266214134
        E2250/50250050160274221140
        E2250/55250055160288231145
        E2250/60250060160297239149

        H = height, L = length, T = depth
        1) Larger heights up to 4000 mm or intermediate heights on request
        2) Total length = (number of sections -1) x length + 40 mm
        3) Nominal heat output according to EN 442
