The original tubular radiator is an efficient all-rounder that inspires through form, function and comfort. The element construction gives Zehnder Charleston its transparent appearance and timeless elegance. The tubular radiator provides comfortable radiant heat and transforms the living space into an oasis of relaxation. Zehnder Charleston has an extended range of models. Available in almost any colour and finish from the Zehnder colour chart.

Benefits

  • Multi-purpose thanks to the wide range of different connections, fittings and models
  • The Zehnder EasyFix fixing system ensures simple and anti-lift assembly
  • Classic, elegant design blends in with any setting
  • High proportion of radiation ensures comfort
  • Available with Zehnder Vario connection fitting for an unobtrusive and elegantly concealed connection system

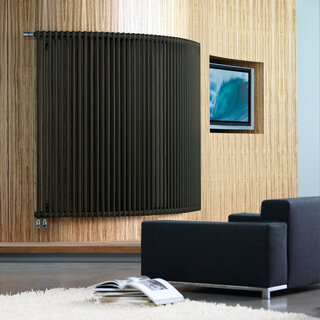

  • Special solutions support a wide range of application, such as curved or angled
  • Easy to clean and perfect for people suffering from allergies thanks to its smooth surface
  • The special Zehnder TopCare surface coating prevents the reproduction and spread of micro-organisms
  • Adaptable to the construction situation thanks to element construction
  • High level of heat capacity also for old buildings with a high heating load

        Technical specifications per element

        Model

        H
        mm
        L1)
        mm
        T
        mm
        Thermal output
        75/65/20 °C2)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        2019177466214.511.87.6
        2026260466221.117.211.1
        2030292466223.619.212.5
        2035342466227.522.414.6
        2040392466231.225.516.5
        2045442466234.928.518.5
        2050492466238.431.320.2
        2055542466241.934.222.1
        2060592466245.336.923.9
        2075742466255.044.829.0
        2090892466263.952.133.7
        2100992466269.556.736.7
        21101092466274.760.939.4
        21201192466282.767.343.4
        21501492466210484.454.0
        21801792466212410063.5
        22001992466213811270.6
        22202192466215112277.3
        22502492466217113888.0
        22802792466218915397.2
        230029924662201163104

        H = height, L = length, T = depth
        1) Total length = number of sections x 46 mm + 26 mm
        2) Nominal heat output according to EN 442

        Technical specifications per element

        Model

        H
        mm
        L1)
        mm
        T
        mm
        Thermal output
        75/65/20 °C2)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        30191854610020.116.310.5
        30262604610027.922.714.7
        30303004610032.026.116.9
        30353504610037.030.219.5
        30404004610041.934.222.1
        30454504610046.838.224.7
        30505004610051.642.127.2
        30555504610056.345.829.5
        30606004610060.949.632.0
        30757504610074.360.539.0
        30909004610087.070.745.4
        310010004610095.177.349.7
        311011004610010383.653.5
        312012004610011593.259.5
        315015004610014011371.7
        318018004610016613484.1
        320020004610018314792.7
        3220220046100200161102
        3250250046100225182115
        3280280046100251203129
        3300300046100269218139

        H = height, L = length, T = depth
        1) Total length = number of sections x 46 mm + 26 mm
        2) Nominal heat output according to EN 442

        Technical specifications per element

        Model

        H
        mm
        L1)
        mm
        T
        mm
        Thermal output
        75/65/20 °C2)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        40192004613628.423.114.9
        40262604613636.529.719.2
        40303004613641.934.222.1
        40353504613648.539.525.6
        40404004613654.944.728.8
        40454504613661.349.932.2
        40505004613667.655.035.5
        40555504613673.760.038.7
        40606004613679.864.941.7
        40757504613697.479.250.9
        40909004613611492.559.2
        410010004613612510164.6
        411011004613613511069.8
        412012004613614711975.6
        415015004613618014692.1
        4180180046136213172108
        4200200046136234189119
        4220220046136256207130
        4250250046136289234148
        4280280046136323262166
        4300300046136345279178

        H = height, L = length, T = depth
        1) Total length = number of sections x 46 mm + 26 mm
        2) Nominal heat output according to EN 442

        Technical specifications per element

        Model

        H
        mm
        L1)
        mm
        T
        mm
        Thermal output
        75/65/20 °C2)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        50192004617335.028.518.4
        50262604617345.136.823.8
        50303004617351.742.227.3
        50353504617359.948.831.4
        50404004617367.955.335.6
        50454504617375.861.739.8
        50505004617383.567.943.6
        50555504617391.174.147.6
        50606004617398.680.251.5
        50757504617312097.362.0
        50909004617314111472.5
        510010004617315412579.2
        511011004617316713585.5
        512012004617317914591.6
        5150150046173219177112
        5180180046173259209132
        5200200046173285230145
        5220220046173312252159
        5250250046173352285180
        5280280046173392317202
        5300300046173420340216

        H = height, L = length, T = depth
        1) Total length = number of sections x 46 mm + 26 mm
        2) Nominal heat output according to EN 442

        Technical specifications per element

        Model

        H
        mm
        L1)
        mm
        T
        mm
        Thermal output
        75/65/20 °C2)
        Watt
        70/55/20 °C
        Watt
        55/45/20 °C
        Watt
        60192004621041.533.721.6
        60262604621053.543.527.9
        60303004621061.349.932.2
        60353504621071.057.837.3
        60404004621080.565.442.0
        60454504621089.873.046.9
        60505004621099.080.451.4
        60555504621010887.756.1
        60606004621011794.860.5
        60757504621014311673.6
        60909004621016713585.5
        610010004621018314893.7
        6110110046210198160101
        6120120046210210170107
        6150150046210256207130
        6180180046210303244154
        6200200046210334270170
        6220220046210365295186
        6250250046210412333210
        6280280046210459372236
        6300300046210491398253

        H = height, L = length, T = depth
        1) Total length = number of sections x 46 mm + 26 mm
        2) Nominal heat output according to EN 442
        Traffic White (9016* / RAL 9016)

        Architectural

        Tonic

        Natural

        Standard

        Surfaces

        Antimicrobial Surface
